CommonDefinitions.hpp File Reference
#include <chrono>
#include <cstdint>
#include <string_view>
#include <vector>

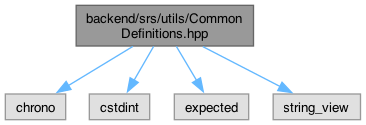

Include dependency graph for CommonDefinitions.hpp:

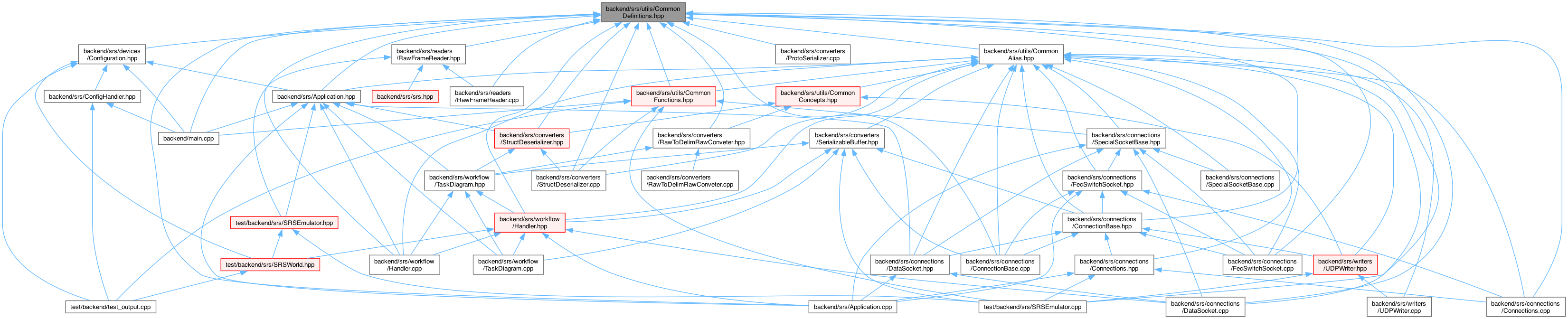

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes

struct  srs::common::MinMax< T >
 Struct to store minimum and maximum values. More...

Namespaces

namespace  srs
namespace  srs::common

Typedefs

using srs::common::RawDelimSizeType = uint32_t

Enumerations

enum class  srs::common::DataPrintMode : uint8_t { srs::common::print_speed , srs::common::print_header , srs::common::print_raw , srs::common::print_all }
 Print mode of the status line. More...
enum class  srs::common::ActionMode : uint8_t {
  srs::common::all , srs::common::acq_on , srs::common::acq_off , srs::common::read_only ,
  srs::common::none
}

Variables

constexpr auto srs::common::BYTE_BIT_LENGTH = 8
constexpr auto srs::common::DEFAULT_SRS_IP = std::string_view{ "10.0.0.2" }
constexpr auto srs::common::DEFAULT_TIMEOUT_SECONDS = 2
constexpr auto srs::common::WRITE_COMMAND_BITS = uint8_t{ 0xaa }
constexpr auto srs::common::DEFAULT_TYPE_BITS = uint8_t{ 0xaa }
constexpr auto srs::common::DEFAULT_CHANNEL_ADDRE = uint16_t{ 0xff }
constexpr auto srs::common::COMMAND_LENGTH_BITS = uint16_t{ 0xffff }
constexpr auto srs::common::ZERO_UINT16_PADDING = uint16_t{}
constexpr auto srs::common::SMALL_READ_MSG_BUFFER_SIZE = 96
constexpr auto srs::common::LARGE_READ_MSG_BUFFER_SIZE = 80'000
 size of the data array for reading a UDP package
constexpr auto srs::common::DEFAULT_CMD_LENGTH = uint16_t{ 0xffff }
constexpr auto srs::common::CMD_TYPE = uint8_t{ 0xaa }
constexpr auto srs::common::WRITE_CMD = uint8_t{ 0xaa }
constexpr auto srs::common::READ_CMD = uint8_t{ 0xbb }
constexpr auto srs::common::I2C_ADDRESS = uint16_t{ 0x0042 }
constexpr auto srs::common::NULL_ADDRESS = uint16_t{ 0x000f }
constexpr auto srs::common::INIT_COUNT_VALUE = uint32_t{ 0x80000000 }
constexpr auto srs::common::DEFAULT_STATUS_WAITING_TIME_SECONDS = std::chrono::seconds{ 5 }
constexpr auto srs::common::DEFAULT_SRS_CONTROL_PORT = 6600
const auto srs::common::FEC_DAQ_RECEIVE_PORT = std::vector<int>{ 6006 }
static constexpr int srs::common::FEC_CONTROL_LOCAL_PORT = 6007
 Default value of the listening port number used for the FEC communications.
constexpr auto srs::common::DEFAULT_DISPLAY_PERIOD = std::chrono::milliseconds{ 200 }
constexpr auto srs::common::DEFAULT_ROOT_HTTP_SERVER_PERIOD = std::chrono::milliseconds{ 1000 }
constexpr auto srs::common::FEC_ID_BIT_LENGTH = 8
constexpr auto srs::common::HIT_DATA_BIT_LENGTH = 48
constexpr auto srs::common::SRS_TIMESTAMP_HIGH_BIT_LENGTH = 32U
constexpr auto srs::common::SRS_TIMESTAMP_LOW_BIT_LENGTH = 10U
constexpr auto srs::common::FLAG_BIT_POSITION = 15
constexpr auto srs::common::GZIP_DEFAULT_COMPRESSION_LEVEL = 9
constexpr auto srs::common::PROTOBUF_ENABLE_GZIP = true
constexpr auto srs::common::DEFAULT_DATA_QUEUE_SIZE = 100
constexpr auto srs::common::DEFAULT_LOG_FILE = std::string_view{ "srs-control/srs-control.log" }
constexpr auto srs::common::DEFAULT_CONFIG_FILE = std::string_view{ "srs-control/config.yaml" }
constexpr auto srs::common::rotating_file_nums = 5
constexpr auto srs::common::file_max_size = 1048576 * 10
 file size limited to 10 MB.
constexpr auto srs::common::exit_logger_begin = std::string_view{ "------->>" }
constexpr auto srs::common::exit_logger_end = std::string_view{ "<<-------" }
constexpr auto srs::common::file_logger_new_instance_str
