srs::reader::RawFrame Class Reference

#include <RawFrameReader.hpp>

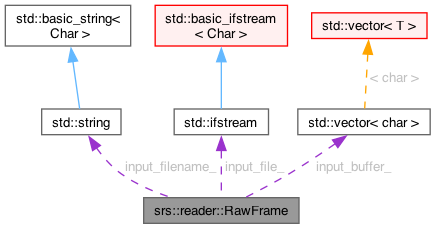

Collaboration diagram for srs::reader::RawFrame:

Public Member Functions
	RawFrame ()=default
	Default Constructor. No memory allocation.
	RawFrame (const std::string &filename)
	Constructor that opens a file with the given filename.
auto	read_one_frame (std::vector< char > &binary_data, std::ifstream &input_file) -> std::expected< std::size_t, std::string >
	Read one frame of the bianry data to a vector.
auto	read_one_frame () -> std::expected< std::string_view, std::string >
	Read one frame of the binary data from a file specified by the constructor RawFrame(const std::string&).
auto	get_binary_data () const -> const auto &
	Getter to the internal binary data used by the member function read_one_frame().
void	reset ()

Private Attributes
std::string	input_filename_
	Input binary file name.
std::ifstream	input_file_
	Input binary file handler.
std::vector< char >	input_buffer_
	internal binary data buffer

Detailed Description

Definition at line 13 of file RawFrameReader.hpp.

Constructor & Destructor Documentation

RawFrame() [1/2]

srs::reader::RawFrame::RawFrame ( )

explicitdefault

Default Constructor. No memory allocation.

RawFrame() [2/2]

srs::reader::RawFrame::RawFrame ( const std::string & filename )

explicit

Constructor that opens a file with the given filename.

Parameters

filename

The file name of the input binary

Definition at line 20 of file RawFrameReader.cpp.

Member Function Documentation

get_binary_data()

auto srs::reader::RawFrame::get_binary_data ( ) const->constauto &

inline

Getter to the internal binary data used by the member function read_one_frame().

Definition at line 57 of file RawFrameReader.hpp.

read_one_frame() [1/2]

auto srs::reader::RawFrame::read_one_frame

(

)

->std::expected< std::string_view, std::string >

Read one frame of the binary data from a file specified by the constructor RawFrame(const std::string&).

The binary data frame is written to the internal member variable input_buffer_; srs::common::LARGE_READ_MSG_BUFFER_SIZE bytes of memory will be reserved for the vector.

Returns

Non-owning binary data.

Definition at line 67 of file RawFrameReader.cpp.

read_one_frame() [2/2]

auto srs::reader::RawFrame::read_one_frame	(	std::vector< char > &	binary_data,
		std::ifstream &	input_file )->std::expected< std::size_t, std::string >

Read one frame of the bianry data to a vector.

The input vector is first reserved with srs::common::LARGE_READ_MSG_BUFFER_SIZE elements and then resized with the size value, which is read from the binary file in the beginning. The vector is then set with size bytes of data from the file.

Parameters

binary_data	The vector of chars to be filled.
input_file	Input file handler.

Returns

The amount of bytes read from the binary file. If the binary input file is not open, return 0.

Definition at line 31 of file RawFrameReader.cpp.

reset()

void srs::reader::RawFrame::reset

(

)

Definition at line 61 of file RawFrameReader.cpp.

Member Data Documentation

input_buffer_

std::vector<char> srs::reader::RawFrame::input_buffer_

private

internal binary data buffer

Definition at line 64 of file RawFrameReader.hpp.

input_file_

std::ifstream srs::reader::RawFrame::input_file_

private

Input binary file handler.

Definition at line 63 of file RawFrameReader.hpp.

input_filename_

std::string srs::reader::RawFrame::input_filename_

private

Input binary file name.

Definition at line 62 of file RawFrameReader.hpp.

---

The documentation for this class was generated from the following files:

• backend/srs/readers/RawFrameReader.hpp
• backend/srs/readers/RawFrameReader.cpp
