TGo4EventSourceParameter Class Reference

#include <TGo4EventSourceParameter.h>

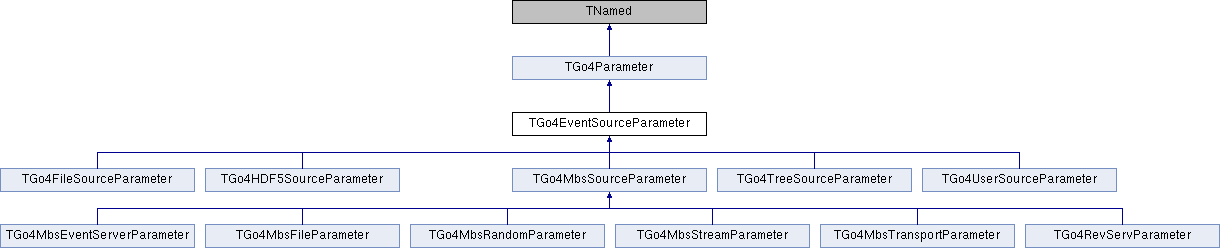

Inheritance diagram for TGo4EventSourceParameter:

Public Member Functions
	TGo4EventSourceParameter ()
	TGo4EventSourceParameter (const char *name, Int_t id=0)
virtual	~TGo4EventSourceParameter ()
Int_t	GetID () const
Int_t	GetTimeout () const
void	SetTimeout (Int_t out)
void	Print (Option_t *opt="") const override
Bool_t	UpdateFrom (TGo4Parameter *rhs) override
Public Member Functions inherited from TGo4Parameter
	TGo4Parameter ()
	TGo4Parameter (const char *name, const char *title="This is a Go4 Parameter Object")
virtual	~TGo4Parameter ()
virtual Int_t	PrintParameter (Text_t *buffer=nullptr, Int_t buflen=0)
void	Print (Option_t *opt="") const override
Bool_t	UpdateFromUrl (const char *rest_url_opt)
virtual Bool_t	CustomUpdateFrom () const
void	Clear (Option_t *opt="") override
void	GetMemberValues (TObjArray *fItems)
Bool_t	SetMemberValues (TObjArray *fItems)
void	SavePrimitive (std::ostream &fs, Option_t *opt="") override
TGo4ParameterStatus *	CreateStatus ()
Bool_t	SetStatus (TGo4ParameterStatus *status)

Private Attributes
Int_t	fiID {0}
Int_t	fiTimeout {1}

Additional Inherited Members
Protected Member Functions inherited from TGo4Parameter
void	GetMemberValues (TObjArray *fItems, TClass *cl, char *ptr, unsigned long int cloffset)
Bool_t	SetMemberValues (TObjArray *items, Int_t &itemsindx, TClass *cl, char *ptr, unsigned long int cloffset)
Int_t	FindArrayLength (TObjArray *items, Int_t &itemsindx, TDataMember *member)

Detailed Description

Basic type for all classes containing information to parameterize the event source. For use in the event factory; factory method gets (possibly subclassed) parameter object which is suited to the concrete user factory. Name string can be used as filename, e.g.

Definition at line 26 of file TGo4EventSourceParameter.h.

Constructor & Destructor Documentation

TGo4EventSourceParameter() [1/2]

TGo4EventSourceParameter::TGo4EventSourceParameter

(

)

Definition at line 24 of file TGo4EventSourceParameter.cxx.

TGo4EventSourceParameter() [2/2]

TGo4EventSourceParameter::TGo4EventSourceParameter	(	const char *	name,
		Int_t	id = 0
	)

Definition at line 19 of file TGo4EventSourceParameter.cxx.

~TGo4EventSourceParameter()

TGo4EventSourceParameter::~TGo4EventSourceParameter ( )

virtual

Definition at line 29 of file TGo4EventSourceParameter.cxx.

Member Function Documentation

GetID()

Int_t TGo4EventSourceParameter::GetID ( ) const

inline

Definition at line 34 of file TGo4EventSourceParameter.h.

References fiID.

Referenced by TGo4ConfigStep::ChangeSourceParameter(), TGo4ConfigStep::CurrentSourceKind(), TGo4ConfigStep::GetSourceSetup(), TGo4ConfigStep::InputArguments(), TGo4ConfigStep::InputPortChanged(), TGo4ConfigStep::InputTagfile(), Print(), and TGo4ConfigStep::RetryCntChanged().

GetTimeout()

Int_t TGo4EventSourceParameter::GetTimeout ( ) const

inline

Definition at line 36 of file TGo4EventSourceParameter.h.

References fiTimeout.

Referenced by TGo4ConfigStep::ChangeSourceParameter(), Print(), TGo4ConfigStep::SourceComboHighlighted(), and TGo4AnalysisWebStatus::UpdateFromUrl().

Print()

void TGo4EventSourceParameter::Print ( Option_t *  opt = "" ) const

override

Definition at line 33 of file TGo4EventSourceParameter.cxx.

References GetID(), GetTimeout(), and TGo4Status::PrintLine().

Referenced by TGo4UserSourceParameter::Print(), TGo4MbsSourceParameter::Print(), and SetTimeout().

SetTimeout()

void TGo4EventSourceParameter::SetTimeout ( Int_t  out )

inline

Definition at line 38 of file TGo4EventSourceParameter.h.

References fiTimeout, Print(), and UpdateFrom().

Referenced by TGo4ConfigStep::ChangeSourceParameter(), TGo4ConfigStep::ChangeSourceTimeout(), main(), TGo4Interface::StepFileSource(), TGo4Interface::StepMbsEventServerSource(), TGo4Interface::StepMbsFileSource(), TGo4Interface::StepMbsRevServSource(), TGo4Interface::StepMbsStreamSource(), TGo4Interface::StepMbsTransportSource(), TGo4Interface::StepRandomSource(), TGo4Interface::StepUserSource(), UpdateFrom(), and TGo4AnalysisWebStatus::UpdateFromUrl().

UpdateFrom()

Bool_t TGo4EventSourceParameter::UpdateFrom ( TGo4Parameter *  rhs )

overridevirtual

update contents of parameter class with external object.

Reimplemented from TGo4Parameter.

Reimplemented in TGo4MbsSourceParameter, TGo4MbsFileParameter, and TGo4UserSourceParameter.

Definition at line 43 of file TGo4EventSourceParameter.cxx.

References fiID, and SetTimeout().

Referenced by SetTimeout(), TGo4UserSourceParameter::UpdateFrom(), and TGo4MbsSourceParameter::UpdateFrom().

Member Data Documentation

fiID

Int_t TGo4EventSourceParameter::fiID {0}

private

Identity number to specify the kind. Optional, default is 0.

Definition at line 48 of file TGo4EventSourceParameter.h.

Referenced by GetID(), and UpdateFrom().

fiTimeout

Int_t TGo4EventSourceParameter::fiTimeout {1}

private

Timeout in seconds. If -1, no timeout (default)

Definition at line 51 of file TGo4EventSourceParameter.h.

Referenced by GetTimeout(), and SetTimeout().

---

The documentation for this class was generated from the following files:

• Go4Event/TGo4EventSourceParameter.h
• Go4Event/TGo4EventSourceParameter.cxx
