TGo4MbsSourceParameter Class Reference

#include <TGo4MbsSourceParameter.h>

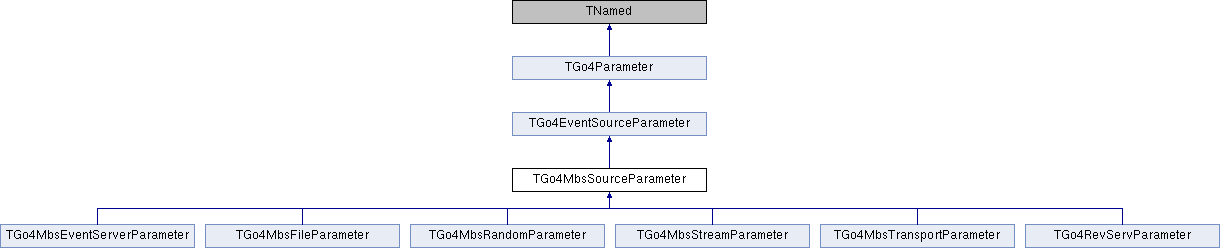

Inheritance diagram for TGo4MbsSourceParameter:

Public Member Functions
	TGo4MbsSourceParameter ()
	TGo4MbsSourceParameter (const char *name, Int_t id)
virtual	~TGo4MbsSourceParameter ()
void	SetStartEvent (UInt_t firstindex)
UInt_t	GetStartEvent () const
void	SetStopEvent (UInt_t lastindex)
UInt_t	GetStopEvent () const
void	SetEventInterval (UInt_t skipinterval)
UInt_t	GetEventInterval () const
void	SetPort (Int_t port)
Int_t	GetPort () const
void	SetRetryCnt (Int_t cnt)
Int_t	GetRetryCnt () const
void	Print (Option_t *opt="") const override
Bool_t	UpdateFrom (TGo4Parameter *rhs) override
Public Member Functions inherited from TGo4EventSourceParameter
	TGo4EventSourceParameter ()
	TGo4EventSourceParameter (const char *name, Int_t id=0)
virtual	~TGo4EventSourceParameter ()
Int_t	GetID () const
Int_t	GetTimeout () const
void	SetTimeout (Int_t out)
void	Print (Option_t *opt="") const override
Public Member Functions inherited from TGo4Parameter
	TGo4Parameter ()
	TGo4Parameter (const char *name, const char *title="This is a Go4 Parameter Object")
virtual	~TGo4Parameter ()
virtual Int_t	PrintParameter (Text_t *buffer=nullptr, Int_t buflen=0)
void	Print (Option_t *opt="") const override
Bool_t	UpdateFromUrl (const char *rest_url_opt)
virtual Bool_t	CustomUpdateFrom () const
void	Clear (Option_t *opt="") override
void	GetMemberValues (TObjArray *fItems)
Bool_t	SetMemberValues (TObjArray *fItems)
void	SavePrimitive (std::ostream &fs, Option_t *opt="") override
TGo4ParameterStatus *	CreateStatus ()
Bool_t	SetStatus (TGo4ParameterStatus *status)

Private Attributes
UInt_t	fuStartEvent {0}
UInt_t	fuStopEvent {0}
UInt_t	fuEventInterval {0}
Int_t	fiPort {0}
Int_t	fiRetryCnt {0}

Additional Inherited Members
Protected Member Functions inherited from TGo4Parameter
void	GetMemberValues (TObjArray *fItems, TClass *cl, char *ptr, unsigned long int cloffset)
Bool_t	SetMemberValues (TObjArray *items, Int_t &itemsindx, TClass *cl, char *ptr, unsigned long int cloffset)
Int_t	FindArrayLength (TObjArray *items, Int_t &itemsindx, TDataMember *member)

Detailed Description

Definition at line 19 of file TGo4MbsSourceParameter.h.

Constructor & Destructor Documentation

TGo4MbsSourceParameter() [1/2]

TGo4MbsSourceParameter::TGo4MbsSourceParameter

(

)

Definition at line 18 of file TGo4MbsSourceParameter.cxx.

TGo4MbsSourceParameter() [2/2]

TGo4MbsSourceParameter::TGo4MbsSourceParameter	(	const char *	name,
		Int_t	id
	)

Definition at line 23 of file TGo4MbsSourceParameter.cxx.

~TGo4MbsSourceParameter()

TGo4MbsSourceParameter::~TGo4MbsSourceParameter ( )

virtual

Definition at line 28 of file TGo4MbsSourceParameter.cxx.

Member Function Documentation

GetEventInterval()

UInt_t TGo4MbsSourceParameter::GetEventInterval ( ) const

inline

Returns event interval

Definition at line 43 of file TGo4MbsSourceParameter.h.

References fuEventInterval.

Referenced by TGo4ConfigStep::ChangeSourceParameter(), Print(), TGo4ConfigStep::SourceComboHighlighted(), and TGo4AnalysisWebStatus::UpdateFromUrl().

GetPort()

Int_t TGo4MbsSourceParameter::GetPort ( ) const

inline

Return optional port number, 0 or negative value means that default port number will be used

Definition at line 49 of file TGo4MbsSourceParameter.h.

References fiPort.

Referenced by TGo4ConfigStep::ChangeSourceParameter(), Print(), TGo4ConfigStep::SourceComboHighlighted(), and TGo4AnalysisWebStatus::UpdateFromUrl().

GetRetryCnt()

Int_t TGo4MbsSourceParameter::GetRetryCnt ( ) const

inline

Return allowed number of reconnection retries

Definition at line 55 of file TGo4MbsSourceParameter.h.

References fiRetryCnt, Print(), and UpdateFrom().

Referenced by Print(), and TGo4ConfigStep::SourceComboHighlighted().

GetStartEvent()

UInt_t TGo4MbsSourceParameter::GetStartEvent ( ) const

inline

Returns the Start index for the NextEvent

Definition at line 31 of file TGo4MbsSourceParameter.h.

References fuStartEvent.

Referenced by TGo4ConfigStep::ChangeSourceParameter(), Print(), TGo4ConfigStep::SourceComboHighlighted(), and TGo4AnalysisWebStatus::UpdateFromUrl().

GetStopEvent()

UInt_t TGo4MbsSourceParameter::GetStopEvent ( ) const

inline

Returns the index of Stop event

Definition at line 37 of file TGo4MbsSourceParameter.h.

References fuStopEvent.

Referenced by TGo4ConfigStep::ChangeSourceParameter(), Print(), TGo4ConfigStep::SourceComboHighlighted(), and TGo4AnalysisWebStatus::UpdateFromUrl().

Print()

void TGo4MbsSourceParameter::Print ( Option_t *  opt = "" ) const

override

basic method to printout object

Definition at line 32 of file TGo4MbsSourceParameter.cxx.

References GetEventInterval(), GetPort(), GetRetryCnt(), GetStartEvent(), GetStopEvent(), TGo4EventSourceParameter::Print(), and TGo4Status::PrintLine().

Referenced by GetRetryCnt(), and TGo4MbsFileParameter::Print().

SetEventInterval()

void TGo4MbsSourceParameter::SetEventInterval ( UInt_t  skipinterval )

inline

Defines event interval

Definition at line 40 of file TGo4MbsSourceParameter.h.

References fuEventInterval.

Referenced by TGo4ConfigStep::ChangeEventInterval(), TGo4ConfigStep::ChangeSourceParameter(), main(), TGo4Interface::StepMbsEventServerSource(), TGo4Interface::StepMbsFileSource(), TGo4Interface::StepMbsRevServSource(), TGo4Interface::StepMbsStreamSource(), TGo4Interface::StepMbsTransportSource(), UpdateFrom(), and TGo4AnalysisWebStatus::UpdateFromUrl().

SetPort()

void TGo4MbsSourceParameter::SetPort ( Int_t  port )

inline

Set optional port number, 0 or negative value means that default port number will be used

Definition at line 46 of file TGo4MbsSourceParameter.h.

References fiPort.

Referenced by TGo4ConfigStep::ChangeSourceParameter(), TGo4ConfigStep::InputPortChanged(), main(), TGo4Interface::StepMbsRevServSource(), TGo4RevServParameter::TGo4RevServParameter(), UpdateFrom(), and TGo4AnalysisWebStatus::UpdateFromUrl().

SetRetryCnt()

void TGo4MbsSourceParameter::SetRetryCnt ( Int_t  cnt )

inline

Set number of allowed reconnection retries

Definition at line 52 of file TGo4MbsSourceParameter.h.

References fiRetryCnt.

Referenced by main(), TGo4ConfigStep::RetryCntChanged(), UpdateFrom(), and TGo4AnalysisWebStatus::UpdateFromUrl().

SetStartEvent()

void TGo4MbsSourceParameter::SetStartEvent ( UInt_t  firstindex )

inline

Define the Start index for the NextEvent

Definition at line 28 of file TGo4MbsSourceParameter.h.

References fuStartEvent.

Referenced by TGo4ConfigStep::ChangeSourceParameter(), TGo4ConfigStep::ChangeStartEvent(), main(), TGo4Interface::StepMbsEventServerSource(), TGo4Interface::StepMbsFileSource(), TGo4Interface::StepMbsRevServSource(), TGo4Interface::StepMbsStreamSource(), TGo4Interface::StepMbsTransportSource(), UpdateFrom(), and TGo4AnalysisWebStatus::UpdateFromUrl().

SetStopEvent()

void TGo4MbsSourceParameter::SetStopEvent ( UInt_t  lastindex )

inline

Define the index of Stop event

Definition at line 34 of file TGo4MbsSourceParameter.h.

References fuStopEvent.

Referenced by TGo4ConfigStep::ChangeSourceParameter(), TGo4ConfigStep::ChangeStopEvent(), main(), TGo4Interface::StepMbsEventServerSource(), TGo4Interface::StepMbsFileSource(), TGo4Interface::StepMbsRevServSource(), TGo4Interface::StepMbsStreamSource(), TGo4Interface::StepMbsTransportSource(), UpdateFrom(), and TGo4AnalysisWebStatus::UpdateFromUrl().

UpdateFrom()

Bool_t TGo4MbsSourceParameter::UpdateFrom ( TGo4Parameter *  rhs )

overridevirtual

update contents of parameter class with external object.

Reimplemented from TGo4EventSourceParameter.

Definition at line 44 of file TGo4MbsSourceParameter.cxx.

References SetEventInterval(), SetPort(), SetRetryCnt(), SetStartEvent(), SetStopEvent(), and TGo4EventSourceParameter::UpdateFrom().

Referenced by GetRetryCnt(), and TGo4MbsFileParameter::UpdateFrom().

Member Data Documentation

fiPort

Int_t TGo4MbsSourceParameter::fiPort {0}

private

Port number .

Definition at line 75 of file TGo4MbsSourceParameter.h.

Referenced by GetPort(), and SetPort().

fiRetryCnt

Int_t TGo4MbsSourceParameter::fiRetryCnt {0}

private

Allowed number of retries when connection lost

Definition at line 78 of file TGo4MbsSourceParameter.h.

Referenced by GetRetryCnt(), and SetRetryCnt().

fuEventInterval

UInt_t TGo4MbsSourceParameter::fuEventInterval {0}

private

Number of events to skip from file in between two read events

Definition at line 72 of file TGo4MbsSourceParameter.h.

Referenced by GetEventInterval(), and SetEventInterval().

fuStartEvent

UInt_t TGo4MbsSourceParameter::fuStartEvent {0}

private

Index of first event to process.

Definition at line 66 of file TGo4MbsSourceParameter.h.

Referenced by GetStartEvent(), and SetStartEvent().

fuStopEvent

UInt_t TGo4MbsSourceParameter::fuStopEvent {0}

private

Index of last event to process.

Definition at line 69 of file TGo4MbsSourceParameter.h.

Referenced by GetStopEvent(), and SetStopEvent().

---

The documentation for this class was generated from the following files:

• Go4EventServer/TGo4MbsSourceParameter.h
• Go4EventServer/TGo4MbsSourceParameter.cxx
