TGo4MbsSource Class Reference

#include <TGo4MbsSource.h>

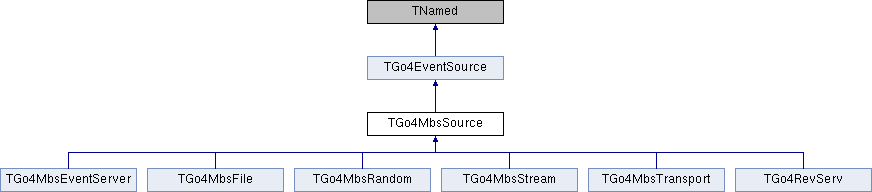

Inheritance diagram for TGo4MbsSource:

Public Member Functions
	TGo4MbsSource ()
	TGo4MbsSource (const char *name, Int_t mode)
	TGo4MbsSource (TGo4MbsSourceParameter *par, Int_t mode)
virtual	~TGo4MbsSource ()
Bool_t	CheckEventClass (TClass *cl) override
Bool_t	BuildEvent (TGo4EventElement *dest) override
virtual Int_t	Close ()
virtual Int_t	Open ()
virtual Int_t	NextEvent ()
void	BuildMbsEvent (TGo4MbsEvent *target)
TGo4MbsSubEvent *	BuildMbsSubEvent (TGo4MbsEvent *target, Int_t fullID, Short_t *source, Int_t datalength)
void	SetStartEvent (UInt_t firstindex)
void	SetStopEvent (UInt_t lastindex)
void	SetEventInterval (UInt_t skipinterval)
void	SetTimeout (Int_t time)
void	SetPort (Int_t port)
s_filhe *	GetInfoHeader () const
virtual s_bufhe *	GetBufferHeader ()
void	SetPrintEvent (Int_t num=1, Int_t sid=-1, Int_t longw=1, Int_t hexw=1, Int_t dataw=0)
void	SetDataCopyMode (Bool_t on)
Public Member Functions inherited from TGo4EventSource
	TGo4EventSource ()
	TGo4EventSource (const char *name)
virtual	~TGo4EventSource ()
void	Clear (Option_t *opt="") override
Int_t	GetCreateStatus () const
Int_t	GetEventStatus () const
const char *	GetErrMess () const
virtual const char *	GetActiveName () const

Static Public Member Functions
static void	SetPollingMode (Bool_t on=kTRUE)

Static Public Attributes
static const UInt_t	fguLONGBYCHAR = sizeof(Int_t) / sizeof(Char_t)
static const UInt_t	fguSHORTBYCHAR = sizeof(Short_t) / sizeof(Char_t)
static const UInt_t	fguLONGBYSHORT = sizeof(Int_t) / sizeof(Short_t)
static const UInt_t	fguEVHEBYCHAR = sizeof(s_evhe) / sizeof(Char_t)
Static Public Attributes inherited from TGo4EventSource
static const Int_t	fgiTIMEOUTDEFAULT =1

Protected Attributes
s_evt_channel *	fxInputChannel {nullptr}
s_ve10_1 *	fxEvent {nullptr}
s_bufhe *	fxBuffer {nullptr}
s_filhe *	fxInfoHeader {nullptr}
Bool_t	fbIsOpen {kFALSE}
Bool_t	fbDataCopyMode {kFALSE}
ULong_t	fuEventCounter {0}
Bool_t	fbFirstEvent {kFALSE}
ULong_t	fuStartEvent {0}
ULong_t	fuStopEvent {0}
ULong_t	fuEventInterval {0}
Int_t	fiTimeout {0}
Bool_t	fbPollingMode {kFALSE}
Int_t	fiPort {0}
	if true, use short timeout to keep gSystem->ProcessEvents() running More...
TGo4MbsSourcePrintPar	fxPrEventPar

Static Protected Attributes
static Bool_t	gbPollingMode = kFALSE

Private Member Functions
Int_t	GetMode () const
	number of allowed reconnect retries More...

Private Attributes
Int_t	fiMode {0}
Int_t	fiRetryCnt {0}

Additional Inherited Members
Protected Types inherited from TGo4EventSource
enum	{ fguTXTLEN = 256 }
Protected Member Functions inherited from TGo4EventSource
void	SetErrMess (const char *txt)
void	SetEventStatus (Int_t status)
void	SetCreateStatus (Int_t status)
void	ThrowError (Int_t creastat, Int_t errstat, const char *message,...)
void	ThrowEOF (Int_t creastat, Int_t errstat, const char *message,...)

Detailed Description

Definition at line 60 of file TGo4MbsSource.h.

Constructor & Destructor Documentation

TGo4MbsSource() [1/3]

TGo4MbsSource::TGo4MbsSource

(

)

default for streamer

Definition at line 77 of file TGo4MbsSource.cxx.

References f_evt_control(), fxInputChannel, and GO4TRACE.

TGo4MbsSource() [2/3]

TGo4MbsSource::TGo4MbsSource	(	const char *	name,
		Int_t	mode
	)

Definition at line 58 of file TGo4MbsSource.cxx.

References f_evt_control(), TGo4EventSource::fgiTIMEOUTDEFAULT, fxInputChannel, GO4TRACE, and SetTimeout().

TGo4MbsSource() [3/3]

TGo4MbsSource::TGo4MbsSource	(	TGo4MbsSourceParameter *	par,
		Int_t	mode
	)

Definition at line 38 of file TGo4MbsSource.cxx.

References f_evt_control(), fxInputChannel, and GO4TRACE.

~TGo4MbsSource()

TGo4MbsSource::~TGo4MbsSource ( )

virtual

Definition at line 91 of file TGo4MbsSource.cxx.

References Close(), fxInputChannel, and GO4TRACE.

Member Function Documentation

BuildEvent()

Bool_t TGo4MbsSource::BuildEvent ( TGo4EventElement *  dest )

overridevirtual

Fill the destination event

Parameters

dest

Reimplemented from TGo4EventSource.

Definition at line 117 of file TGo4MbsSource.cxx.

References BuildMbsEvent(), TGo4Log::Debug(), TGo4EventSource::GetErrMess(), GETEVT__SUCCESS, and NextEvent().

BuildMbsEvent()

void TGo4MbsSource::BuildMbsEvent

(

TGo4MbsEvent *

target

)

This methods actually fills the target event class which is passed as pointer. Uses the latest event which is referenced by fxEvent or fxBuffer. Does not fetch a new event from source, therefore one source event may be used to fill several TGo4MbsEvent classes. To get a new event call NextEvent() before this method.

Definition at line 130 of file TGo4MbsSource.cxx.

References TGo4MbsEvent::AddSubEvent(), TGo4Log::Debug(), f_evt_type(), fbDataCopyMode, fguEVHEBYCHAR, fguSHORTBYCHAR, TGo4MbsSourcePrintPar::fiData, TGo4MbsSourcePrintPar::fiHex, TGo4MbsSourcePrintPar::fiLong, TGo4MbsSourcePrintPar::fiNum, TGo4MbsSourcePrintPar::fiSid, fxBuffer, fxEvent, fxPrEventPar, TGo4EventSource::GetErrMess(), TGo4EventSource::GetEventStatus(), GETEVT__SUCCESS, GO4TRACE, s_ve10_1::i_dummy, s_ves10_1::i_subtype, s_ve10_1::i_subtype, s_ve10_1::i_trigger, s_ves10_1::i_type, s_ve10_1::i_type, s_ve10_1::l_count, s_evhe::l_dlen, s_ve10_1::l_dlen, s_ves10_1::l_dlen, TGo4MbsEvent::SetCount(), TGo4MbsEvent::SetDlen(), TGo4MbsEvent::SetDummy(), TGo4EventSource::SetErrMess(), TGo4MbsSubEvent::SetSubtype(), TGo4MbsEvent::SetSubtype(), TGo4MbsEvent::SetTrigger(), TGo4MbsSubEvent::SetType(), TGo4MbsEvent::SetType(), and TGo4EventElement::SetValid().

Referenced by BuildEvent().

BuildMbsSubEvent()

TGo4MbsSubEvent * TGo4MbsSource::BuildMbsSubEvent	(	TGo4MbsEvent *	target,
		Int_t	fullID,
		Short_t *	source,
		Int_t	datalength
	)

Auxiliary function to fill datalength words (Short_t) from source into the next subevent of target with matching header fullID longword. Returns handle to this subevent.

Definition at line 243 of file TGo4MbsSource.cxx.

References TGo4MbsEvent::AddSubEvent(), and fbDataCopyMode.

CheckEventClass()

Bool_t TGo4MbsSource::CheckEventClass ( TClass *  cl )

overridevirtual

Check that filled event is a proper class

Reimplemented from TGo4EventSource.

Definition at line 112 of file TGo4MbsSource.cxx.

Close()

Int_t TGo4MbsSource::Close ( )

virtual

Close the file or connection.

Reimplemented in TGo4MbsFile, and TGo4MbsRandom.

Definition at line 405 of file TGo4MbsSource.cxx.

References f_evt_get_close(), fbIsOpen, fxInputChannel, TGo4EventSource::GetCreateStatus(), GETEVT__SUCCESS, and GO4TRACE.

Referenced by NextEvent(), TGo4MbsEventServer::~TGo4MbsEventServer(), ~TGo4MbsSource(), TGo4MbsStream::~TGo4MbsStream(), TGo4MbsTransport::~TGo4MbsTransport(), and TGo4RevServ::~TGo4RevServ().

GetBufferHeader()

s_bufhe * TGo4MbsSource::GetBufferHeader ( )

virtual

User access to current event buffer header.

Reimplemented in TGo4MbsRandom.

Definition at line 419 of file TGo4MbsSource.cxx.

References f_evt_get_buffer_ptr(), and fxInputChannel.

Referenced by TGo4MbsEvent::GetMbsBufferHeader().

GetInfoHeader()

s_filhe* TGo4MbsSource::GetInfoHeader ( ) const

inline

User access to info header. May contain additional run information

Definition at line 111 of file TGo4MbsSource.h.

Referenced by TGo4MbsEvent::GetMbsSourceHeader().

GetMode()

Int_t TGo4MbsSource::GetMode ( ) const

inlineprivate

number of allowed reconnect retries

Definition at line 145 of file TGo4MbsSource.h.

Referenced by Open().

NextEvent()

Int_t TGo4MbsSource::NextEvent ( )

virtual

Requests the next event from mbs source. Returns event status value.

Reimplemented in TGo4MbsFile, and TGo4MbsRandom.

Definition at line 256 of file TGo4MbsSource.cxx.

References Close(), f_evt_error(), f_evt_get_event(), fbFirstEvent, fbIsOpen, fbPollingMode, TGo4EventSource::fguTXTLEN, fiMode, fiRetryCnt, fuEventCounter, fuEventInterval, fuStartEvent, fuStopEvent, fxBuffer, fxEvent, fxInputChannel, TGo4EventSource::GetErrMess(), TGo4EventSource::GetEventStatus(), GETEVT__EVENT, GETEVT__NOMORE, GETEVT__REVSERV, GETEVT__STREAM, GETEVT__TIMEOUT, GETEVT__TRANS, GO4TRACE, HandleAnlysisEvents(), TGo4Log::Info(), Open(), TGo4EventSource::SetErrMess(), TGo4EventSource::SetEventStatus(), and TGo4Log::Warn().

Referenced by BuildEvent().

Open()

Int_t TGo4MbsSource::Open ( )

virtual

Open the file or connection.

Reimplemented in TGo4MbsFile, and TGo4MbsRandom.

Definition at line 347 of file TGo4MbsSource.cxx.

References s_evt_channel::cb_polling, TGo4Log::Debug(), f_evt_error(), f_evt_get_open(), f_evt_source_port(), f_evt_timeout(), fbIsOpen, fbPollingMode, TGo4EventSource::fguTXTLEN, fiMode, fiPort, fiTimeout, fxInfoHeader, fxInputChannel, gbPollingMode, TGo4EventSource::GetCreateStatus(), GETEVT__EVENT, GETEVT__FILE, GETEVT__REVSERV, GETEVT__STREAM, GETEVT__SUCCESS, GETEVT__TRANS, GetMode(), GO4TRACE, HandleAnlysisEvents(), TGo4EventSource::SetCreateStatus(), and TGo4EventSource::SetErrMess().

Referenced by NextEvent(), TGo4MbsEventServer::TGo4MbsEventServer(), TGo4MbsStream::TGo4MbsStream(), TGo4MbsTransport::TGo4MbsTransport(), and TGo4RevServ::TGo4RevServ().

SetDataCopyMode()

void TGo4MbsSource::SetDataCopyMode ( Bool_t  on )

inline

Definition at line 134 of file TGo4MbsSource.h.

SetEventInterval()

void TGo4MbsSource::SetEventInterval ( UInt_t  skipinterval )

inline

Definition at line 104 of file TGo4MbsSource.h.

SetPollingMode()

void TGo4MbsSource::SetPollingMode ( Bool_t  on = kTRUE )

static

Definition at line 98 of file TGo4MbsSource.cxx.

References gbPollingMode.

Referenced by main().

SetPort()

void TGo4MbsSource::SetPort ( Int_t  port )

inline

Definition at line 108 of file TGo4MbsSource.h.

SetPrintEvent()

void TGo4MbsSource::SetPrintEvent	(	Int_t	num = 1,
		Int_t	sid = -1,
		Int_t	longw = 1,
		Int_t	hexw = 1,
		Int_t	dataw = 0
	)

Set mbs source into printout (verbose) mode for the next num events. Subevent id sid may be specific (-1 is all subevents). Parameters longw, hexw, dataw switch output data formats. See MbsAPI function f_evt_type().

Definition at line 103 of file TGo4MbsSource.cxx.

References TGo4MbsSourcePrintPar::fiData, TGo4MbsSourcePrintPar::fiHex, TGo4MbsSourcePrintPar::fiLong, TGo4MbsSourcePrintPar::fiNum, TGo4MbsSourcePrintPar::fiSid, and fxPrEventPar.

Referenced by TGo4ComSetPrintEvent::ExeCom(), and TGo4MbsEvent::SetPrintEvent().

SetStartEvent()

void TGo4MbsSource::SetStartEvent ( UInt_t  firstindex )

inline

Define the Start index for the NextEvent

Definition at line 100 of file TGo4MbsSource.h.

SetStopEvent()

void TGo4MbsSource::SetStopEvent ( UInt_t  lastindex )

inline

Definition at line 102 of file TGo4MbsSource.h.

SetTimeout()

void TGo4MbsSource::SetTimeout ( Int_t  time )

inline

Definition at line 106 of file TGo4MbsSource.h.

Referenced by TGo4MbsSource().

Member Data Documentation

fbDataCopyMode

Bool_t TGo4MbsSource::fbDataCopyMode {kFALSE}

protected

switches buildmbs event mode: if true, data buffer is copied to own buffer of subevent. If false (default), mbs subevent uses reference to external data buffer of eventapi.

Definition at line 165 of file TGo4MbsSource.h.

Referenced by BuildMbsEvent(), and BuildMbsSubEvent().

fbFirstEvent

Bool_t TGo4MbsSource::fbFirstEvent {kFALSE}

protected

Indicates if first event should be extracted

Definition at line 171 of file TGo4MbsSource.h.

Referenced by TGo4MbsFile::NextEvent(), NextEvent(), and TGo4MbsFile::OpenFile().

fbIsOpen

Bool_t TGo4MbsSource::fbIsOpen {kFALSE}

protected

Definition at line 160 of file TGo4MbsSource.h.

Referenced by TGo4MbsRandom::Close(), TGo4MbsFile::Close(), Close(), NextEvent(), TGo4MbsRandom::Open(), TGo4MbsFile::Open(), and Open().

fbPollingMode

Bool_t TGo4MbsSource::fbPollingMode {kFALSE}

protected

Definition at line 185 of file TGo4MbsSource.h.

Referenced by NextEvent(), and Open().

fguEVHEBYCHAR

const UInt_t TGo4MbsSource::fguEVHEBYCHAR = sizeof(s_evhe) / sizeof(Char_t)

static

ratio sizeof(s_evhe) by sizeof(char).

Definition at line 126 of file TGo4MbsSource.h.

Referenced by BuildMbsEvent().

fguLONGBYCHAR

const UInt_t TGo4MbsSource::fguLONGBYCHAR = sizeof(Int_t) / sizeof(Char_t)

static

ratio sizeof(long) by sizeof(char).

Definition at line 117 of file TGo4MbsSource.h.

fguLONGBYSHORT

const UInt_t TGo4MbsSource::fguLONGBYSHORT = sizeof(Int_t) / sizeof(Short_t)

static

ratio sizeof(long) by sizeof(short).

Definition at line 123 of file TGo4MbsSource.h.

Referenced by TGo4MbsSubEvent::Clear().

fguSHORTBYCHAR

const UInt_t TGo4MbsSource::fguSHORTBYCHAR = sizeof(Short_t) / sizeof(Char_t)

static

ratio sizeof(short) by sizeof(char).

Definition at line 120 of file TGo4MbsSource.h.

Referenced by BuildMbsEvent().

fiMode

Int_t TGo4MbsSource::fiMode {0}

private

Mode of operation

Definition at line 141 of file TGo4MbsSource.h.

Referenced by NextEvent(), and Open().

fiPort

Int_t TGo4MbsSource::fiPort {0}

protected

if true, use short timeout to keep gSystem->ProcessEvents() running

Optional port parameter, if non-positive default port number for transport will be used

Definition at line 188 of file TGo4MbsSource.h.

Referenced by Open().

fiRetryCnt

Int_t TGo4MbsSource::fiRetryCnt {0}

private

Definition at line 143 of file TGo4MbsSource.h.

Referenced by NextEvent().

fiTimeout

Int_t TGo4MbsSource::fiTimeout {0}

protected

Timeout in seconds for mbs getevent. If -1, no timeout (default)

Definition at line 183 of file TGo4MbsSource.h.

Referenced by Open().

fuEventCounter

ULong_t TGo4MbsSource::fuEventCounter {0}

protected

Current event index counter

Definition at line 168 of file TGo4MbsSource.h.

Referenced by TGo4MbsFile::NextEvent(), NextEvent(), and TGo4MbsFile::NextFile().

fuEventInterval

ULong_t TGo4MbsSource::fuEventInterval {0}

protected

Number of events to skip from file in between two read events

Definition at line 180 of file TGo4MbsSource.h.

Referenced by TGo4MbsFile::NextEvent(), NextEvent(), and TGo4MbsFile::NextFile().

fuStartEvent

ULong_t TGo4MbsSource::fuStartEvent {0}

protected

Index of first event to process.

Definition at line 174 of file TGo4MbsSource.h.

Referenced by TGo4MbsFile::NextEvent(), NextEvent(), and TGo4MbsFile::NextFile().

fuStopEvent

ULong_t TGo4MbsSource::fuStopEvent {0}

protected

Index of last event to process.

Definition at line 177 of file TGo4MbsSource.h.

Referenced by TGo4MbsFile::NextEvent(), NextEvent(), and TGo4MbsFile::NextFile().

fxBuffer

s_bufhe* TGo4MbsSource::fxBuffer {nullptr}

protected

Points to the current gsi buffer structure filled by the event source.

Definition at line 155 of file TGo4MbsSource.h.

Referenced by BuildMbsEvent(), and NextEvent().

fxEvent

s_ve10_1* TGo4MbsSource::fxEvent {nullptr}

protected

Definition at line 152 of file TGo4MbsSource.h.

Referenced by BuildMbsEvent(), TGo4MbsRandom::Close(), TGo4MbsFile::NextEvent(), TGo4MbsRandom::NextEvent(), NextEvent(), and TGo4MbsRandom::Open().

fxInfoHeader

s_filhe* TGo4MbsSource::fxInfoHeader {nullptr}

protected

Reference to header info delivered by source.

Definition at line 158 of file TGo4MbsSource.h.

Referenced by Open(), and TGo4MbsFile::OpenFile().

fxInputChannel

s_evt_channel* TGo4MbsSource::fxInputChannel {nullptr}

protected

Event channel structure used by event source.

Definition at line 150 of file TGo4MbsSource.h.

Referenced by Close(), TGo4MbsFile::CloseFile(), GetBufferHeader(), TGo4MbsFile::NextEvent(), NextEvent(), Open(), TGo4MbsFile::OpenFile(), TGo4MbsSource(), and ~TGo4MbsSource().

fxPrEventPar

TGo4MbsSourcePrintPar TGo4MbsSource::fxPrEventPar

protected

This structure keeps parameters for printevent mode

Definition at line 191 of file TGo4MbsSource.h.

Referenced by BuildMbsEvent(), and SetPrintEvent().

gbPollingMode

Bool_t TGo4MbsSource::gbPollingMode = kFALSE

staticprotected

Definition at line 193 of file TGo4MbsSource.h.

Referenced by Open(), and SetPollingMode().

---

The documentation for this class was generated from the following files:

• Go4EventServer/TGo4MbsSource.h
• Go4EventServer/TGo4MbsSource.cxx
