HYDRA - THE HADES ANALYSIS PACKAGE » (UNKNOWN) » HRichCalSim

class HRichCalSim: public HRichCal


 $Id: $

*-- Author  : RICH team member
*-- Revised : Martin Jurkovic <martin.jurkovic@ph.tum.de> 2010

_HADES_CLASS_DESCRIPTION


  HRichCalSim

  cal class for simulated data.
  contains OLD RICH :
  fTrackIds[0]+fTrackIds[1] : index1-index2 range in HRichTrack category (indexes of the first and last track numbers)
  fNofTracks = 2;
  fEnergy = average energy of the photon hit per track

  RICH700:
  fTrackIds[10] : Geant track IDS
  fNofTracks = number of trackIDs
  fEnergy = 0;

  isNewRich() returns kTRUE when filled by HRich700Digitizer

Function Members (Methods)

public:
HRichCalSim()
HRichCalSim(Float_t ch)
HRichCalSim(const HRichCalSim&)
HRichCalSim(Int_t s, Int_t r, Int_t c)
virtual~HRichCalSim()
voidTObject::AbstractMethod(const char* method) const
Float_tHRichCal::addCharge(Float_t q)
voidaddEnergy(Float_t e)
voidaddHit()
Float_tHRichCal::addToT(Float_t tot)
voidaddTrackId(Int_t trackId)
virtual voidTObject::AppendPad(Option_t* option = "")
virtual voidTObject::Browse(TBrowser* b)
Bool_tcheckTrackId(Int_t trackId)
static TClass*Class()
virtual const char*TObject::ClassName() const
virtual voidTObject::Clear(Option_t* = "")
virtual TObject*TObject::Clone(const char* newname = "") const
virtual Int_tTObject::Compare(const TObject* obj) const
virtual voidTObject::Copy(TObject& object) const
virtual voidTObject::Delete(Option_t* option = "")MENU
virtual Int_tTObject::DistancetoPrimitive(Int_t px, Int_t py)
virtual voidTObject::Draw(Option_t* option = "")
virtual voidTObject::DrawClass() constMENU
virtual TObject*TObject::DrawClone(Option_t* option = "") constMENU
virtual voidTObject::Dump() constMENU
virtual voidTObject::Error(const char* method, const char* msgfmt) const
virtual voidTObject::Execute(const char* method, const char* params, Int_t* error = 0)
virtual voidTObject::Execute(TMethod* method, TObjArray* params, Int_t* error = 0)
virtual voidTObject::ExecuteEvent(Int_t event, Int_t px, Int_t py)
virtual voidTObject::Fatal(const char* method, const char* msgfmt) const
virtual TObject*TObject::FindObject(const char* name) const
virtual TObject*TObject::FindObject(const TObject* obj) const
Int_tHRichCal::getAddress() const
Float_tHRichCal::getCharge() const
Int_tHRichCal::getCol() const
virtual Option_t*TObject::GetDrawOption() const
static Long_tTObject::GetDtorOnly()
Float_tgetEnergy() const
Int_tHRichCal::getEventNr() const
virtual const char*TObject::GetIconName() const
Bool_tHRichCal::getIsCleanedHigh() const
Bool_tHRichCal::getIsCleanedSector() const
Bool_tHRichCal::getIsCleanedSingle() const
virtual HLocation*HLocatedDataObject::getLocation()
virtual Int_tHLocatedDataObject::getLocationIndex(Int_t n)
Int_tHRichCal::getMult() const
virtual const char*TObject::GetName() const
Int_tgetNHits()
virtual Int_tHLocatedDataObject::getNLocationIndex()
Int_tgetNofTrackIds()
virtual char*TObject::GetObjectInfo(Int_t px, Int_t py) const
static Bool_tTObject::GetObjectStat()
virtual Option_t*TObject::GetOption() const
Int_tHRichCal::getRow() const
Int_tHRichCal::getSector() const
Float_tHRichCal::getTime() const
virtual const char*TObject::GetTitle() const
Float_tHRichCal::getToT() const
Int_tgetTrackId(Int_t index)
virtual UInt_tTObject::GetUniqueID() const
virtual Bool_tTObject::HandleTimer(TTimer* timer)
virtual ULong_tTObject::Hash() const
voidHRichCal::increaseMult()
virtual voidTObject::Info(const char* method, const char* msgfmt) const
virtual Bool_tTObject::InheritsFrom(const char* classname) const
virtual Bool_tTObject::InheritsFrom(const TClass* cl) const
virtual voidTObject::Inspect() constMENU
voidTObject::InvertBit(UInt_t f)
virtual TClass*IsA() const
virtual Bool_tTObject::IsEqual(const TObject* obj) const
virtual Bool_tTObject::IsFolder() const
Bool_tisNewRich()
Bool_tTObject::IsOnHeap() const
virtual Bool_tHRichCal::IsSortable() const
Bool_tTObject::IsZombie() const
virtual voidTObject::ls(Option_t* option = "") const
voidTObject::MayNotUse(const char* method) const
virtual Bool_tTObject::Notify()
voidTObject::Obsolete(const char* method, const char* asOfVers, const char* removedFromVers) const
static voidTObject::operator delete(void* ptr)
static voidTObject::operator delete(void* ptr, void* vp)
static voidTObject::operator delete[](void* ptr)
static voidTObject::operator delete[](void* ptr, void* vp)
void*TObject::operator new(size_t sz)
void*TObject::operator new(size_t sz, void* vp)
void*TObject::operator new[](size_t sz)
void*TObject::operator new[](size_t sz, void* vp)
HRichCalSim&operator=(const HRichCalSim&)
virtual voidTObject::Paint(Option_t* option = "")
virtual voidTObject::Pop()
virtual voidTObject::Print(Option_t* option = "") const
virtual Int_tTObject::Read(const char* name)
virtual voidTObject::RecursiveRemove(TObject* obj)
voidTObject::ResetBit(UInt_t f)
virtual voidTObject::SaveAs(const char* filename = "", Option_t* option = "") constMENU
virtual voidTObject::SavePrimitive(ostream& out, Option_t* option = "")
voidTObject::SetBit(UInt_t f)
voidTObject::SetBit(UInt_t f, Bool_t set)
voidHRichCal::setCharge(Float_t q)
voidHRichCal::setCol(Int_t c)
virtual voidTObject::SetDrawOption(Option_t* option = "")MENU
static voidTObject::SetDtorOnly(void* obj)
voidsetEnergy(Float_t ene)
voidHRichCal::setEventNr(Int_t e)
voidHRichCal::setIsCleanedHigh(Bool_t b)
voidHRichCal::setIsCleanedSector(Bool_t b)
voidHRichCal::setIsCleanedSingle(Bool_t b)
voidHRichCal::setMult(Int_t i)
static voidTObject::SetObjectStat(Bool_t stat)
voidHRichCal::setRow(Int_t r)
voidHRichCal::setSector(Int_t s)
voidHRichCal::setTime(Float_t t)
voidHRichCal::setToT(Float_t t)
virtual voidTObject::SetUniqueID(UInt_t uid)
virtual voidShowMembers(TMemberInspector&)
virtual voidStreamer(TBuffer&)
voidStreamerNVirtual(TBuffer& ClassDef_StreamerNVirtual_b)
virtual voidTObject::SysError(const char* method, const char* msgfmt) const
Bool_tTObject::TestBit(UInt_t f) const
Int_tTObject::TestBits(UInt_t f) const
virtual voidTObject::UseCurrentStyle()
virtual voidTObject::Warning(const char* method, const char* msgfmt) const
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0)
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0) const
protected:
virtual voidTObject::DoError(int level, const char* location, const char* fmt, va_list va) const
voidTObject::MakeZombie()
private:
voidinitTrackIds()

Data Members

private:
Int_tfCt! tmp counter for HRichDigitizer
Float_tfEnergyenergy of the photon coupling to the pad, in case of direct hits is -1
Int_tfNofTracksnumber stored track ids
Int_tfTrackIds[10]array trackids

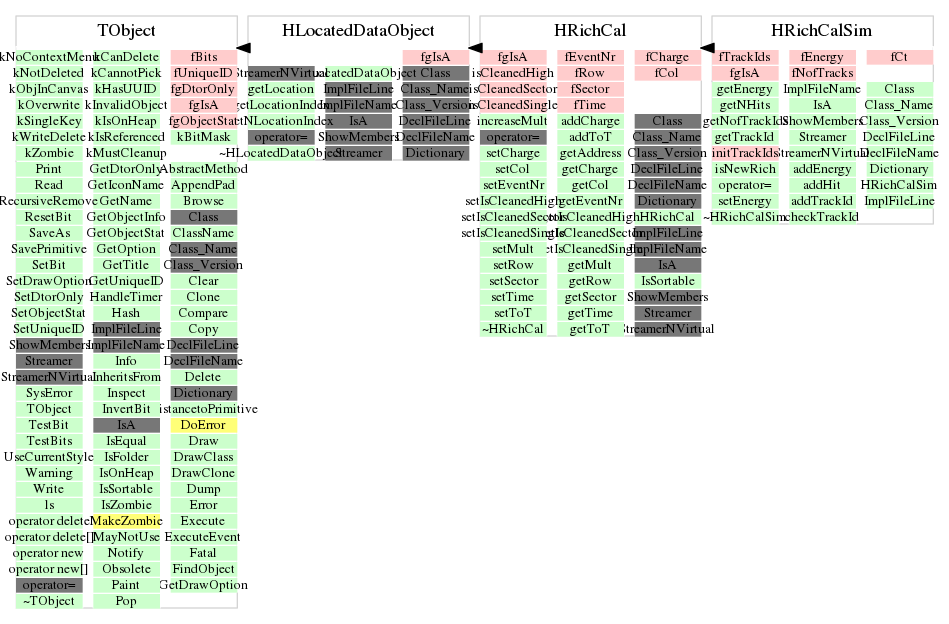

Class Charts

Inheritance Inherited Members Includes Libraries
Class Charts

Function documentation

HRichCalSim()
HRichCalSim(Float_t ch)
HRichCalSim(Int_t s, Int_t r, Int_t c)
void initTrackIds()
Bool_t checkTrackId(Int_t trackId)
 check that trackId is not added
 kTRUE : track is already in the list of tracks
 kFALSE : track is not in the list of tracks
void addTrackId(Int_t trackId)
 store trackId for one richCal
 use checkTrackId(Int_t trackId) to cekc if the
 track is in the list of tracks already
Int_t getTrackId(Int_t index)
void Streamer(TBuffer& )
 Stream an object of class HRichCalSim.
HRichCalSim()
virtual ~HRichCalSim()
{}
void setEnergy(Float_t ene)
{ fEnergy = ene; }
void addEnergy(Float_t e)
{ fEnergy += e; }
void addHit()
{ fCt++; }
Int_t getNHits()
{ return fCt; }
Int_t getNofTrackIds()
{ return fNofTracks;}
Float_t getEnergy(void)
{ return fEnergy; }
Bool_t isNewRich()
{return fEnergy == 0 ? kTRUE : kFALSE;}
