class HKickCandidateEvaluator: public TObject

_HADES_CLASS_DESCRIPTION

HKickCandidateEvaluator

   Evaluates a candidate from a KickImpact and a TOF
or Shower hit using the kickplane.

Function Members (Methods)

public:
HKickCandidateEvaluator(const HKickCandidateEvaluator&)
HKickCandidateEvaluator(HKickPlane2* k, HKickMatchPar* p)
virtual~HKickCandidateEvaluator()
voidTObject::AbstractMethod(const char* method) const
virtual voidTObject::AppendPad(Option_t* option = "")
virtual voidTObject::Browse(TBrowser* b)
static TClass*Class()
virtual const char*TObject::ClassName() const
virtual voidTObject::Clear(Option_t* = "")
virtual TObject*TObject::Clone(const char* newname = "") const
virtual Int_tTObject::Compare(const TObject* obj) const
virtual voidTObject::Copy(TObject& object) const
virtual voidTObject::Delete(Option_t* option = "")MENU
virtual Int_tTObject::DistancetoPrimitive(Int_t px, Int_t py)
virtual voidTObject::Draw(Option_t* option = "")
virtual voidTObject::DrawClass() constMENU
virtual TObject*TObject::DrawClone(Option_t* option = "") constMENU
virtual voidTObject::Dump() constMENU
virtual voidTObject::Error(const char* method, const char* msgfmt) const
virtual voidevaluate(HKickImpact* imp, HTofHit* hit, HKickCandidate& out)
virtual voidevaluate(HKickImpact* imp, HTofCluster* cluster, HKickCandidate& out)
virtual voidevaluate(HKickImpact* imp, HShowerHit* hit, HKickCandidate& out)
virtual voidTObject::Execute(const char* method, const char* params, Int_t* error = 0)
virtual voidTObject::Execute(TMethod* method, TObjArray* params, Int_t* error = 0)
virtual voidTObject::ExecuteEvent(Int_t event, Int_t px, Int_t py)
virtual voidTObject::Fatal(const char* method, const char* msgfmt) const
virtual TObject*TObject::FindObject(const char* name) const
virtual TObject*TObject::FindObject(const TObject* obj) const
virtual Option_t*TObject::GetDrawOption() const
static Long_tTObject::GetDtorOnly()
virtual const char*TObject::GetIconName() const
virtual const char*TObject::GetName() const
virtual char*TObject::GetObjectInfo(Int_t px, Int_t py) const
static Bool_tTObject::GetObjectStat()
virtual Option_t*TObject::GetOption() const
virtual const char*TObject::GetTitle() const
virtual UInt_tTObject::GetUniqueID() const
virtual Bool_tTObject::HandleTimer(TTimer* timer)
virtual ULong_tTObject::Hash() const
virtual voidTObject::Info(const char* method, const char* msgfmt) const
virtual Bool_tTObject::InheritsFrom(const char* classname) const
virtual Bool_tTObject::InheritsFrom(const TClass* cl) const
virtual voidTObject::Inspect() constMENU
voidTObject::InvertBit(UInt_t f)
virtual TClass*IsA() const
virtual Bool_tTObject::IsEqual(const TObject* obj) const
virtual Bool_tTObject::IsFolder() const
Bool_tTObject::IsOnHeap() const
virtual Bool_tTObject::IsSortable() const
Bool_tisTofSimulated()
Bool_tTObject::IsZombie() const
virtual voidTObject::ls(Option_t* option = "") const
voidTObject::MayNotUse(const char* method) const
virtual Bool_tTObject::Notify()
static voidTObject::operator delete(void* ptr)
static voidTObject::operator delete(void* ptr, void* vp)
static voidTObject::operator delete[](void* ptr)
static voidTObject::operator delete[](void* ptr, void* vp)
void*TObject::operator new(size_t sz)
void*TObject::operator new(size_t sz, void* vp)
void*TObject::operator new[](size_t sz)
void*TObject::operator new[](size_t sz, void* vp)
HKickCandidateEvaluator&operator=(const HKickCandidateEvaluator&)
virtual voidTObject::Paint(Option_t* option = "")
virtual voidTObject::Pop()
virtual voidTObject::Print(Option_t* option = "") const
virtual Int_tTObject::Read(const char* name)
virtual voidTObject::RecursiveRemove(TObject* obj)
voidTObject::ResetBit(UInt_t f)
virtual voidTObject::SaveAs(const char* filename = "", Option_t* option = "") constMENU
virtual voidTObject::SavePrimitive(basic_ostream<char,char_traits<char> >& out, Option_t* option = "")
voidTObject::SetBit(UInt_t f)
voidTObject::SetBit(UInt_t f, Bool_t set)
virtual voidTObject::SetDrawOption(Option_t* option = "")MENU
static voidTObject::SetDtorOnly(void* obj)
voidsetKickPlane(HKickPlane2* k, HKickMatchPar* p)
voidsetMdcGeometry(HMdcGeomPar* mdc)
static voidTObject::SetObjectStat(Bool_t stat)
voidsetShowerGeometry(HShowerGeometry* sho)
voidsetSimulatedTof()
voidsetSpecGeometry(HSpecGeomPar* spec)
voidsetTofGeometry(HTofGeomPar* tof)
voidsetTofinoGeometry(HTofinoGeomPar* tofino)
voidsetTofXResolution(Float_t f)
virtual voidTObject::SetUniqueID(UInt_t uid)
virtual voidShowMembers(TMemberInspector& insp, char* parent)
virtual voidStreamer(TBuffer& b)
voidStreamerNVirtual(TBuffer& b)
virtual voidTObject::SysError(const char* method, const char* msgfmt) const
Bool_tTObject::TestBit(UInt_t f) const
Int_tTObject::TestBits(UInt_t f) const
virtual voidTObject::UseCurrentStyle()
virtual voidTObject::Warning(const char* method, const char* msgfmt) const
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0)
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0) const
protected:
virtual voidTObject::DoError(int level, const char* location, const char* fmt, va_list va) const
voidevaluate(HKickImpact* imp, HKickCandidate& out)
voidTObject::MakeZombie()
voidtransform(HShowerHit* data)
voidtransform(HTofHit* data, HGeomVector& r)
voidtransform(HTofCluster* data, HGeomVector& r)

Data Members

public:
enum TObject::EStatusBits { kCanDelete
kMustCleanup
kObjInCanvas
kIsReferenced
kHasUUID
kCannotPick
kNoContextMenu
kInvalidObject
};
enum TObject::[unnamed] { kIsOnHeap
kNotDeleted
kZombie
kBitMask
kSingleKey
kOverwrite
kWriteDelete
};
protected:
Double_tfDistanceToFarHitdist. from kick impact to far hit.
HGeomVectorfFarDir
Double_tfFarPlaneOffsetOffset of TOF rod or Shower pad
Double_tfFarPlaneSlopeSlope of TOF rod or Shower pad
HGeomVectorfFarPos
HGeomVectorfFarPosErr
Float_tfGhi1
Float_tfGhi2
HKickPlane2*fKickPlane! Not owner
Float_tfMass
Float_tfMassErr
HKickMassFitfMassFitter
HKickMatchPar*fMatchPar! Not owner
HMdcGeomPar*fMdcGeometry!Mdc geometry. Not owner
HGeomVectorfMetaNormVecvector perpendicular to the META wall
Float_tfPFitted momentum
Float_tfPhi1
Float_tfPhi2Deflection angles
Float_tfPredictedSinPhi
HShowerGeometry*fShoGeometry!Shower geometry. Not owner
Float_tfSinGhi
Float_tfSinPhi
HSpecGeomPar*fSpecGeometry!TOF geometry. Not owner
HTofGeomPar*fTofGeometry!TOF geometry. Not owner
Float_tfTofXResolutionPosition resolution of TOF in X
HTofinoGeomPar*fTofinoGeometry! Tofino geometry
Bool_tfUseSimTofFIXME: SIM: Use HTofHitSim

Class Charts

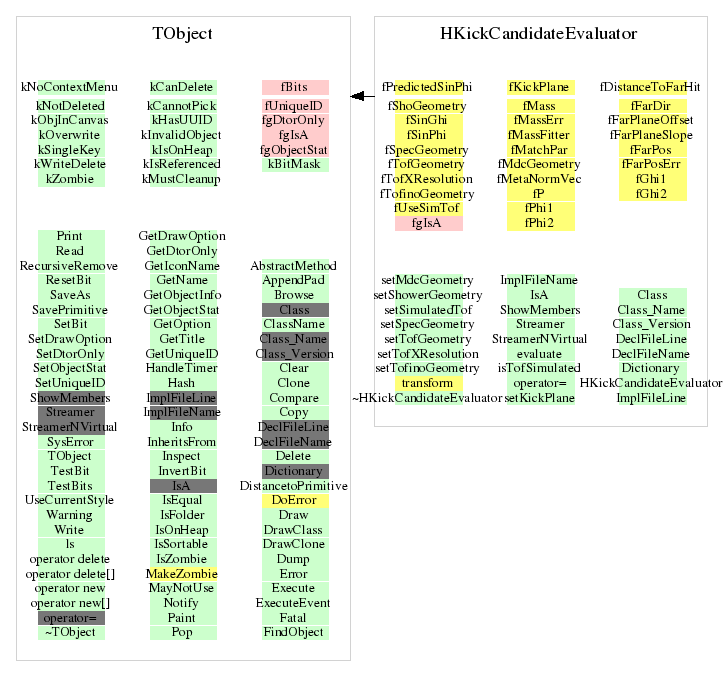

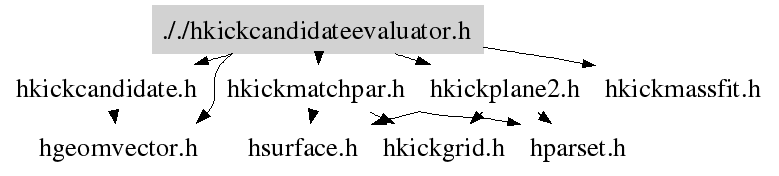

Inheritance Inherited Members Includes Libraries
Class Charts

Function documentation

void evaluate(HKickImpact *imp, HTofHit *hit, HKickCandidate &out)
Evaluates a candidate formed by a hit in the kick plane and another one in
the TOF. It internaly uses the generic evaluation function but adds specific
void evaluate(HKickImpact *imp, HTofCluster *cluster, HKickCandidate &out)
 Evaluates a candidate formed by a ToF cluster in the kick plane and
 another one in the TOF. It internaly uses the generic evaluation
 function but adds specific
void transform(HTofHit *data,HGeomVector &r)
Transforms a TOF hit from the local coordinate system to the LAB
coordinate system and smears the data acording to the resolution.
void transform(HTofCluster *data,HGeomVector &r)
 Transforms a TOF cluster from lab coordinate system into the local
 coordinate system. Then takes it into the sector
 coordinate system and smears the data acording to the resolution.
 Sector coordinate system is mentioned as the LAB coordinate
 system transformed into the sector 0.
void transform(HShowerHit* data)
converts a Shower hit into a standard form for evaluation.
void evaluate(HKickImpact *imp,HShowerHit *hit, HKickCandidate &out)
Evaluates a candidate formed by a hit in the kick plane and another one in
the Shower. It internaly uses the generic evaluation function.
void evaluate(HKickImpact* imp, HKickCandidate& out)
Generic evaluation of a candidate
HKickCandidateEvaluator(HKickPlane2* k, HKickMatchPar* p)
{ fKickPlane=k; fUseSimTof=kFALSE; fMatchPar= p;}
~HKickCandidateEvaluator(void)
{}
void setTofGeometry(HTofGeomPar* tof)
{ fTofGeometry=tof; }
void setKickPlane(HKickPlane2* k, HKickMatchPar* p)
void setTofinoGeometry(HTofinoGeomPar* tofino)
{ fTofinoGeometry = tofino; }
void setSpecGeometry(HSpecGeomPar* spec)
{ fSpecGeometry=spec; }
void setMdcGeometry(HMdcGeomPar* mdc)
{ fMdcGeometry = mdc; }
void setShowerGeometry(HShowerGeometry* sho)
{ fShoGeometry = sho; }
void setSimulatedTof(void)
{ fUseSimTof=kTRUE; }
void setTofXResolution(Float_t f)
{ fTofXResolution = f;}
Bool_t isTofSimulated(void)
{ return fUseSimTof; }
