class HRpcHitSim: public HRpcHit

_HADES_CLASS_DESCRIPTION


HRpcHitSim
this is the hit data level for simulated data
it stores 4 references to hgeantrpc objects and the corresponding track

Function Members (Methods)

public:
HRpcHitSim()
HRpcHitSim(const HRpcHitSim&)
virtual~HRpcHitSim()
voidTObject::AbstractMethod(const char* method) const
virtual voidTObject::AppendPad(Option_t* option = "")
virtual voidTObject::Browse(TBrowser* b)
static TClass*Class()
virtual const char*TObject::ClassName() const
voidclear()
virtual voidTObject::Clear(Option_t* = "")
virtual TObject*TObject::Clone(const char* newname = "") const
virtual Int_tTObject::Compare(const TObject* obj) const
virtual voidTObject::Copy(TObject& object) const
virtual voidTObject::Delete(Option_t* option = "")MENU
virtual Int_tTObject::DistancetoPrimitive(Int_t px, Int_t py)
virtual voidTObject::Draw(Option_t* option = "")
virtual voidTObject::DrawClass() constMENU
virtual TObject*TObject::DrawClone(Option_t* option = "") constMENU
virtual voidTObject::Dump() constMENU
virtual voidTObject::Error(const char* method, const char* msgfmt) const
virtual voidTObject::Execute(const char* method, const char* params, Int_t* error = 0)
virtual voidTObject::Execute(TMethod* method, TObjArray* params, Int_t* error = 0)
virtual voidTObject::ExecuteEvent(Int_t event, Int_t px, Int_t py)
virtual voidTObject::Fatal(const char* method, const char* msgfmt) const
virtual TObject*TObject::FindObject(const char* name) const
virtual TObject*TObject::FindObject(const TObject* obj) const
Int_tHRpcHit::getCell() const
Float_tHRpcHit::getCharge()
Int_tHRpcHit::getColumn() const
virtual Option_t*TObject::GetDrawOption() const
static Long_tTObject::GetDtorOnly()
virtual const char*TObject::GetIconName() const
Int_tHRpcHit::getLocationIndex(Int_t i)
virtual const char*TObject::GetName() const
Int_tHRpcHit::getNLocationIndex()
virtual char*TObject::GetObjectInfo(Int_t px, Int_t py) const
static Bool_tTObject::GetObjectStat()
virtual Option_t*TObject::GetOption() const
Int_tgetRefL()
Int_tgetRefLDgtr()
Int_tgetRefR()
Int_tgetRefRDgtr()
Int_tHRpcHit::getSector() const
virtual const char*TObject::GetTitle() const
Float_tHRpcHit::getTof()
Float_tHRpcHit::getTOFRMS()
Int_tgetTrackL()
Int_tgetTrackLDgtr()
Int_tgetTrackR()
Int_tgetTrackRDgtr()
virtual UInt_tTObject::GetUniqueID() const
Float_tHRpcHit::getXMod()
Float_tHRpcHit::getXRMS()
Float_tHRpcHit::getXSec()
Float_tHRpcHit::getYMod()
Float_tHRpcHit::getYRMS()
Float_tHRpcHit::getYSec()
Float_tHRpcHit::getZMod()
Float_tHRpcHit::getZRMS()
Float_tHRpcHit::getZSec()
virtual Bool_tTObject::HandleTimer(TTimer* timer)
virtual ULong_tTObject::Hash() const
virtual voidTObject::Info(const char* method, const char* msgfmt) const
virtual Bool_tTObject::InheritsFrom(const char* classname) const
virtual Bool_tTObject::InheritsFrom(const TClass* cl) const
virtual voidTObject::Inspect() constMENU
voidTObject::InvertBit(UInt_t f)
virtual TClass*IsA() const
virtual Bool_tTObject::IsEqual(const TObject* obj) const
virtual Bool_tTObject::IsFolder() const
Bool_tTObject::IsOnHeap() const
virtual Bool_tTObject::IsSortable() const
Bool_tTObject::IsZombie() const
virtual voidTObject::ls(Option_t* option = "") const
voidTObject::MayNotUse(const char* method) const
virtual Bool_tTObject::Notify()
static voidTObject::operator delete(void* ptr)
static voidTObject::operator delete(void* ptr, void* vp)
static voidTObject::operator delete[](void* ptr)
static voidTObject::operator delete[](void* ptr, void* vp)
void*TObject::operator new(size_t sz)
void*TObject::operator new(size_t sz, void* vp)
void*TObject::operator new[](size_t sz)
void*TObject::operator new[](size_t sz, void* vp)
HRpcHitSim&operator=(const HRpcHitSim&)
virtual voidTObject::Paint(Option_t* option = "")
virtual voidTObject::Pop()
virtual voidTObject::Print(Option_t* option = "") const
virtual Int_tTObject::Read(const char* name)
virtual voidTObject::RecursiveRemove(TObject* obj)
voidTObject::ResetBit(UInt_t f)
virtual voidTObject::SaveAs(const char* filename = "", Option_t* option = "") constMENU
virtual voidTObject::SavePrimitive(basic_ostream<char,char_traits<char> >& out, Option_t* option = "")
voidHRpcHit::setAddress(Short_t add)
voidHRpcHit::setAddress(Int_t sec, Int_t col, Int_t cell)
voidTObject::SetBit(UInt_t f)
voidTObject::SetBit(UInt_t f, Bool_t set)
virtual voidTObject::SetDrawOption(Option_t* option = "")MENU
static voidTObject::SetDtorOnly(void* obj)
voidHRpcHit::setHit(Float_t atof, Float_t acharge, Float_t axmod, Float_t aymod, Float_t azmod)
voidHRpcHit::setLogBit(Short_t lBit)
static voidTObject::SetObjectStat(Bool_t stat)
voidsetRefL(Int_t aRefL)
voidsetRefLDgtr(Int_t aRefLDgtr)
voidsetRefR(Int_t aRefR)
voidsetRefRDgtr(Int_t aRefRDgtr)
voidHRpcHit::setRMS(Float_t asigma_tof, Float_t asigma_x, Float_t asigma_y, Float_t asigma_z)
voidsetTrackL(Int_t aTrackL)
voidsetTrackLDgtr(Int_t aTrackLDgtr)
voidsetTrackR(Int_t aTrackR)
voidsetTrackRDgtr(Int_t aTrackRDgtr)
virtual voidTObject::SetUniqueID(UInt_t uid)
voidHRpcHit::setXSec(Float_t axsec)
voidHRpcHit::setYSec(Float_t aysec)
voidHRpcHit::setZSec(Float_t azsec)
virtual voidShowMembers(TMemberInspector& insp, char* parent)
virtual voidStreamer(TBuffer& b)
voidStreamerNVirtual(TBuffer& b)
virtual voidTObject::SysError(const char* method, const char* msgfmt) const
Bool_tTObject::TestBit(UInt_t f) const
Int_tTObject::TestBits(UInt_t f) const
virtual voidTObject::UseCurrentStyle()
virtual voidTObject::Warning(const char* method, const char* msgfmt) const
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0)
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0) const
protected:
virtual voidTObject::DoError(int level, const char* location, const char* fmt, va_list va) const
voidTObject::MakeZombie()

Data Members

public:
enum TObject::EStatusBits { kCanDelete
kMustCleanup
kObjInCanvas
kIsReferenced
kHasUUID
kCannotPick
kNoContextMenu
kInvalidObject
};
enum TObject::[unnamed] { kIsOnHeap
kNotDeleted
kZombie
kBitMask
kSingleKey
kOverwrite
kWriteDelete
};
protected:
Int_tRefLindex of hgeantrpc object, created in EBOX by the particle whose daughter made the left signal
Int_tRefLDgtr" " , created in the gap EGij by the particle that contributed most to the left signal
Int_tRefR" " , created in EBOX by the particle whose daughter made the right signal
Int_tRefRDgtr" " , created in the gap EGij by the particle that contributed most to the right signal
Int_tTrackLtrack for hgeantrpc object,created in EBOX by the particle whose daughter made the left signal
Int_tTrackLDgtr" " , created in the gap EGij by the particle that contributed most to the left signal
Int_tTrackR" " , created in EBOX by the particle whose daughter made the right signal
Int_tTrackRDgtr" " , created in the gap EGij by the particle that contributed most to the right signal
Short_tHRpcHit::addressGeometrical address (sec, col, cell)
Float_tHRpcHit::chargeCharge [pC]
Short_tHRpcHit::logBitData Info
Float_tHRpcHit::sigma_tofSigma of tof [ps]
Float_tHRpcHit::sigma_xSigma of x [mm]
Float_tHRpcHit::sigma_ySigma of y [mm]
Float_tHRpcHit::sigma_zSigma of z [mm]
Float_tHRpcHit::tofTime of flight [ns]
Float_tHRpcHit::xmodX coordinate in Module system [mm]
Float_tHRpcHit::xsecX coordinate in Sector system [mm]
Float_tHRpcHit::ymodY coordinate in Module system [mm]
Float_tHRpcHit::ysecY coordinate in Sector system [mm]
Float_tHRpcHit::zmodZ coordinate in Module system [mm]
Float_tHRpcHit::zsecZ coordinate in Sector system [mm]

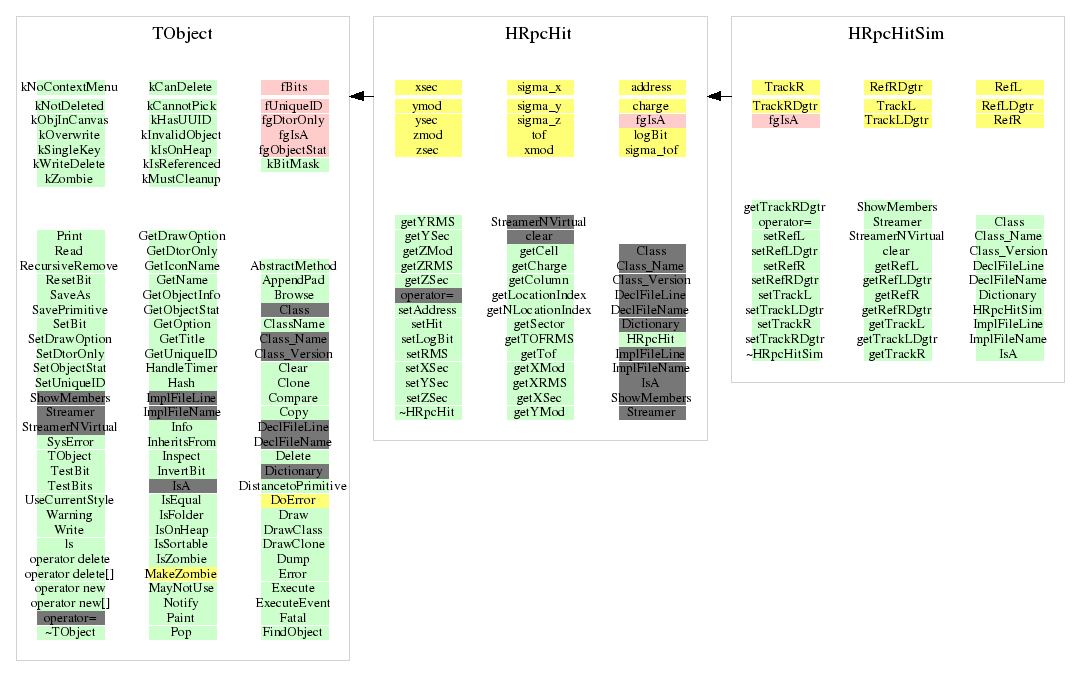

Class Charts

Inheritance Inherited Members Includes Libraries
Class Charts

Function documentation

void clear(void)
HRpcHitSim(const HRpcHitSim& )
{}
~HRpcHitSim(void)
{}
void setRefL(Int_t aRefL)
{ RefL=aRefL; }
void setRefR(Int_t aRefR)
{ RefR=aRefR; }
void setRefLDgtr(Int_t aRefLDgtr)
{ RefLDgtr=aRefLDgtr; }
void setRefRDgtr(Int_t aRefRDgtr)
{ RefRDgtr=aRefRDgtr; }
void setTrackL(Int_t aTrackL)
{ TrackL=aTrackL; }
void setTrackR(Int_t aTrackR)
{ TrackR=aTrackR; }
void setTrackLDgtr(Int_t aTrackLDgtr)
{ TrackLDgtr=aTrackLDgtr; }
void setTrackRDgtr(Int_t aTrackRDgtr)
{ TrackRDgtr=aTrackRDgtr; }
Int_t getRefL()
{ return RefL; }
Int_t getRefR()
{ return RefR; }
Int_t getRefLDgtr()
{ return RefLDgtr; }
Int_t getRefRDgtr()
{ return RefRDgtr; }
Int_t getTrackL()
{ return TrackL; }
Int_t getTrackR()
{ return TrackR; }
Int_t getTrackLDgtr()
{ return TrackLDgtr; }
Int_t getTrackRDgtr()
{ return TrackRDgtr; }
