#include <TGo4ClientTask.h>

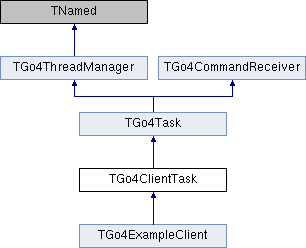

Inheritance diagram for TGo4ClientTask:

Public Member Functions
	TGo4ClientTask (const char name, const char serverhost="localhost", UInt_t negotiationport=0, Bool_t blockingmode=kTRUE, Bool_t standalone=kFALSE, Bool_t autostart=kFALSE, Bool_t autocreate=kTRUE, Bool_t ismaster=kFALSE, Bool_t autoconnect=kTRUE)

virtual	~TGo4ClientTask ()

Int_t	Initialization () override

void	Quit () override

TGo4TaskStatus *	CreateStatus () override

TGo4TaskHandler *	GetTaskHandler () override

void	AddLocalCommand (TGo4Command *com)

TGo4BufferQueue *	GetCommandQueue (const char *task=nullptr) override

TGo4BufferQueue *	GetStatusQueue (const char *task=nullptr) override

TGo4BufferQueue *	GetDataQueue (const char *task=nullptr) override

Bool_t	ConnectServer (const char node, UInt_t negport, Go4CommandMode_t role=kGo4ComModeRefused, const char passwd=nullptr)

Bool_t	DisconnectServer (Bool_t isterminating=kFALSE)

const char *	GetServerHostName () const

Bool_t	IsConnected () const

Public Member Functions inherited from TGo4Task
	TGo4Task (const char *name, Bool_t blockingmode, Bool_t autostart=kFALSE, Bool_t autocreate=kTRUE, Bool_t ismaster=kFALSE)

virtual	~TGo4Task ()

virtual void	Start ()

virtual void	Stop ()

virtual void	KillMain ()

virtual void	RestartMain ()

void	Terminate (Bool_t termapp=kTRUE) override

void	TerminateFast () override

virtual void	ExecuteString (const char *command)

Bool_t	IsMaster () const

void	SetOwner (TGo4TaskOwner *owner)

void	AddUserCommand (TGo4Command *com)

void	AddUserCommandList (TGo4CommandProtoList *comlist)

TGo4Status *	NextStatus (Bool_t wait=kTRUE)

TObject *	NextObject (Bool_t wait=kTRUE)

virtual TGo4Command *	NextCommand ()

void	SendObject (TObject obj, const char receiver=nullptr)

virtual void	SendStatus (TGo4Status stat, const char receiver=nullptr)

virtual void	SendStatusBuffer ()

TMutex *	GetStatusBufferMutex ()

void	SendStatusMessage (Int_t level, Bool_t printout, const char *text,...)

void	UpdateStatusBuffer ()

Int_t	Initialization () override

Bool_t	SubmitCommand (const char *name)

Bool_t	SubmitEmergencyCommand (Go4EmergencyCommand_t val)

Bool_t	SubmitEmergencyData (Go4EmergencyCommand_t val, const char *receiver=nullptr)

Bool_t	SubmitLocalCommand (TGo4Command *com)

Bool_t	SubmitCommand (TGo4Command *com)

TGo4Command *	MakeCommand (const char *name)

void	WakeCommandQueue (Int_t id=0)

virtual Int_t	StartWorkThreads ()

virtual Int_t	StopWorkThreads ()

Bool_t	IsWorkStopped () const

virtual void	GetStatus ()

const char *	GetCommanderName () const

TGo4Master *	GetMaster () const

TGo4Slave *	GetSlave () const

void	SendStopBuffers (const char *taskname=nullptr)

TBuffer *	GetAbortBuffer ()

Public Member Functions inherited from TGo4ThreadManager
	TGo4ThreadManager (const TGo4ThreadManager &right)

	TGo4ThreadManager (const char *name, Bool_t blockingmode=kTRUE, Bool_t autostart=kTRUE, Bool_t autocreate=kTRUE)

virtual	~TGo4ThreadManager ()

void	SetTimer (TGo4AppControlTimer *ctrltimer)

TGo4ThreadHandler *	GetWorkHandler () const

Bool_t	BlockApp ()

Bool_t	UnBlockApp (Int_t mode=0)

Bool_t	IsInitDone () const

Bool_t	IsTerminating () const

Bool_t	IsTerminateApp () const

Bool_t	IsAppBlocking () const

Bool_t	IsBeingQuit () const

void	SetBeingQuit (Bool_t on)

void	Launch ()

Public Member Functions inherited from TGo4CommandReceiver
	TGo4CommandReceiver ()

virtual	~TGo4CommandReceiver ()

Protected Member Functions
void	UpdateStatus (TGo4TaskStatus *state) override

Protected Member Functions inherited from TGo4Task
virtual TGo4TaskHandlerCommandList *	CreateCommandList ()

TGo4TaskHandlerCommandList *	GetPrototype ()

TGo4ObjectQueue *	GetLocalCommandQueue ()

void	SetMaster (Bool_t on=kTRUE)

void	SetWorkIsStopped (Bool_t on)

Private Attributes
TGo4BufferQueue *	fxStatusQ {nullptr}

TGo4BufferQueue *	fxDataQ {nullptr}

TGo4BufferQueue *	fxCommandQ {nullptr}

TGo4TaskHandler *	fxTaskHandler {nullptr}

TString	fxServerHostname

Bool_t	fbAutoConnect {kFALSE}

Bool_t	fbServerConnected {kFALSE}

Additional Inherited Members
Public Types inherited from TGo4ThreadManager
enum	{ fguTEXTLENGTH = 256 }

Static Public Member Functions inherited from TGo4Task
static Int_t	Get_fgiTERMID ()

Static Public Attributes inherited from TGo4ThreadManager
static const Long_t	fglTIMERPERIOD = 200

Protected Attributes inherited from TGo4Task
TMutex *	fxStatusMutex {nullptr}

TBuffer *	fxStatusBuffer {nullptr}

Protected Attributes inherited from TGo4ThreadManager
Bool_t	fbInitDone {kFALSE}

Bool_t	fbTerminating {kFALSE}

Bool_t	fbTerminateApplication {kFALSE}

Bool_t	fbAppBlocking {kFALSE}

Bool_t	fbAutoCreate {kFALSE}

Bool_t	fbAutoStart {kFALSE}

Int_t	fbBeingQuit {0}

TGo4AppControlTimer *	fxBlocker {nullptr}

TGo4ThreadHandler *	fxWorkHandler {nullptr}

Detailed Description

This class controls a client application running in a task which is controlled by another server task via transport channels which are held by a task handler object. Apart from the transport threads, the application class which inherits from client task may provide working threads to serve the data queues and do the actual work

Definition at line 33 of file TGo4ClientTask.h.

Constructor & Destructor Documentation

◆ TGo4ClientTask()

TGo4ClientTask::TGo4ClientTask	(	const char *	name,
		const char *	serverhost = `"localhost"`,
		UInt_t	negotiationport = `0`,
		Bool_t	blockingmode = `kTRUE`,
		Bool_t	standalone = `kFALSE`,
		Bool_t	autostart = `kFALSE`,
		Bool_t	autocreate = `kTRUE`,
		Bool_t	ismaster = `kFALSE`,
		Bool_t	autoconnect = `kTRUE`
	)

Definition at line 23 of file TGo4ClientTask.cxx.

References fxCommandQ, fxDataQ, fxServerHostname, fxStatusQ, fxTaskHandler, TGo4TaskHandler::GetCommandQueue(), TGo4TaskHandler::GetDataQueue(), TGo4TaskHandler::GetStatusQueue(), GetTaskHandler(), TGo4Task::IsMaster(), and TGo4ThreadManager::Launch().

◆ ~TGo4ClientTask()

TGo4ClientTask::~TGo4ClientTask ( )

virtual

Definition at line 51 of file TGo4ClientTask.cxx.

References DisconnectServer(), and fxTaskHandler.

Member Function Documentation

◆ AddLocalCommand()

void TGo4ClientTask::AddLocalCommand ( TGo4Command * com )

Put command into the command queue for local execution in main thread

Definition at line 169 of file TGo4ClientTask.cxx.

References TGo4BufferQueue::AddBufferFromObject(), TGo4Log::Debug(), and fxCommandQ.

◆ ConnectServer()

Bool_t TGo4ClientTask::ConnectServer	(	const char *	node,
		UInt_t	negport,
		Go4CommandMode_t	role = `kGo4ComModeRefused`,
		const char *	passwd = `nullptr`
	)

Connect this client to a waiting server task on node with negotiation channel negport. Returns connection state, true if connection is established, otherwise false.

Definition at line 79 of file TGo4ClientTask.cxx.

References TGo4TaskHandler::ClearQueues(), TGo4TaskHandler::Connect(), TGo4Log::Error(), fbServerConnected, fxTaskHandler, TGo4ThreadManager::fxWorkHandler, TGo4Log::Info(), TGo4Task::IsMaster(), kGo4ComModeAdministrator, kGo4ComModeController, kGo4ComModeObserver, TGo4Task::SendStatusMessage(), TGo4TaskHandler::SetAdminAccount(), TGo4TaskHandler::SetCtrlAccount(), TGo4TaskHandler::SetNegotiationPort(), TGo4TaskHandler::SetObservAccount(), TGo4TaskHandler::SetRole(), TGo4ThreadHandler::StartAll(), and TGo4Log::Warn().

Referenced by TGo4AnalysisProxy::ConnectToServer(), and Initialization().

◆ CreateStatus()

TGo4TaskStatus * TGo4ClientTask::CreateStatus ( )

overridevirtual

create a status object with information on the current client state. this object may be sent to the server or may be used to restore current status by memento mechanism

Reimplemented from TGo4Task.

Reimplemented in TGo4ExampleClient.

Definition at line 154 of file TGo4ClientTask.cxx.

References UpdateStatus().

◆ DisconnectServer()

Bool_t TGo4ClientTask::DisconnectServer ( Bool_t isterminating = kFALSE )

Disconnect the current server task, but do not terminate the client. Return value indicates success state: true if disconnected, false if connection is still existing. If isterminating=true, work threads are not restarted again.

Definition at line 119 of file TGo4ClientTask.cxx.

References TGo4Queue::Clear(), TGo4TaskHandler::DisConnect(), fbServerConnected, fxTaskHandler, TGo4Task::Get_fgiTERMID(), GetCommandQueue(), TGo4Task::IsMaster(), TGo4Task::SendStopBuffers(), TGo4Task::StartWorkThreads(), TGo4Task::StopWorkThreads(), and TGo4Task::WakeCommandQueue().

Referenced by TGo4Master::DisconnectSlave(), Quit(), and ~TGo4ClientTask().

◆ GetCommandQueue()

TGo4BufferQueue * TGo4ClientTask::GetCommandQueue ( const char * task = nullptr )

overridevirtual

Reimplemented from TGo4Task.

Definition at line 180 of file TGo4ClientTask.cxx.

References fxCommandQ.

Referenced by DisconnectServer().

◆ GetDataQueue()

TGo4BufferQueue * TGo4ClientTask::GetDataQueue ( const char * task = nullptr )

overridevirtual

Reimplemented from TGo4Task.

Definition at line 189 of file TGo4ClientTask.cxx.

References fxDataQ.

Referenced by TGo4ExampleClient::TGo4ExampleClient().

◆ GetServerHostName()

const char* TGo4ClientTask::GetServerHostName ( ) const

inline

Definition at line 100 of file TGo4ClientTask.h.

References fxServerHostname.

Referenced by Initialization(), and UpdateStatus().

◆ GetStatusQueue()

TGo4BufferQueue * TGo4ClientTask::GetStatusQueue ( const char * task = nullptr )

overridevirtual

Reimplemented from TGo4Task.

Definition at line 185 of file TGo4ClientTask.cxx.

References fxStatusQ.

◆ GetTaskHandler()

TGo4TaskHandler * TGo4ClientTask::GetTaskHandler ( )

overridevirtual

Reimplemented from TGo4Task.

Definition at line 57 of file TGo4ClientTask.cxx.

References fxTaskHandler.

Referenced by TGo4ClientTask(), and TGo4ExampleClient::TGo4ExampleClient().

◆ Initialization()

Int_t TGo4ClientTask::Initialization ( )

overridevirtual

override the ThreadManager Initialization used by AppControlTimer to let this thing initialize the client transport connection

Reimplemented from TGo4ThreadManager.

Definition at line 62 of file TGo4ClientTask.cxx.

References ConnectServer(), fbAutoConnect, TGo4ThreadManager::fbInitDone, GetServerHostName(), TGo4Task::Initialization(), and TGo4Task::Terminate().

◆ IsConnected()

Bool_t TGo4ClientTask::IsConnected ( ) const

inline

Definition at line 102 of file TGo4ClientTask.h.

References fbServerConnected, and UpdateStatus().

Referenced by TGo4TaskOwner::IsConnected().

◆ Quit()

void TGo4ClientTask::Quit ( )

overridevirtual

Quit the client; method to be called from command object, may be overridden in user implementation

Reimplemented from TGo4Task.

Definition at line 144 of file TGo4ClientTask.cxx.

References TGo4Log::Debug(), DisconnectServer(), TGo4Task::IsMaster(), TGo4Task::Quit(), TGo4Task::SendStatusMessage(), and TGo4Task::Terminate().

◆ UpdateStatus()

void TGo4ClientTask::UpdateStatus ( TGo4TaskStatus * state )

overrideprotectedvirtual

method needed by method CreateStatus of any status subclasses to set the values of the clienttask specific part of the status object.

Reimplemented from TGo4Task.

Reimplemented in TGo4ExampleClient.

Definition at line 161 of file TGo4ClientTask.cxx.

References GetServerHostName(), TGo4ClientStatus::SetNames(), and TGo4Task::UpdateStatus().

Referenced by CreateStatus(), IsConnected(), and TGo4ExampleClient::UpdateStatus().

Member Data Documentation

◆ fbAutoConnect

Bool_t TGo4ClientTask::fbAutoConnect {kFALSE}

private

!True if client task shall try to connect automatically at Initialization. This is the previous behaviour with standalone client. If false, connection will be done on ConnectServer method.

Definition at line 132 of file TGo4ClientTask.h.

Referenced by Initialization().

◆ fbServerConnected

Bool_t TGo4ClientTask::fbServerConnected {kFALSE}

private

true if connection to server is established, otherwise false

Definition at line 137 of file TGo4ClientTask.h.

Referenced by ConnectServer(), DisconnectServer(), and IsConnected().

◆ fxCommandQ

TGo4BufferQueue* TGo4ClientTask::fxCommandQ {nullptr}

private

Definition at line 117 of file TGo4ClientTask.h.

Referenced by AddLocalCommand(), GetCommandQueue(), and TGo4ClientTask().

◆ fxDataQ

TGo4BufferQueue* TGo4ClientTask::fxDataQ {nullptr}

private

Definition at line 116 of file TGo4ClientTask.h.

Referenced by GetDataQueue(), and TGo4ClientTask().

◆ fxServerHostname

TString TGo4ClientTask::fxServerHostname

private

hostname of server machine

Definition at line 126 of file TGo4ClientTask.h.

Referenced by GetServerHostName(), and TGo4ClientTask().

◆ fxStatusQ

TGo4BufferQueue* TGo4ClientTask::fxStatusQ {nullptr}

private

Definition at line 115 of file TGo4ClientTask.h.

Referenced by GetStatusQueue(), and TGo4ClientTask().

◆ fxTaskHandler

TGo4TaskHandler* TGo4ClientTask::fxTaskHandler {nullptr}

private

1 1

Definition at line 123 of file TGo4ClientTask.h.

Referenced by ConnectServer(), DisconnectServer(), GetTaskHandler(), TGo4ClientTask(), and ~TGo4ClientTask().

The documentation for this class was generated from the following files:

Go4TaskHandler/TGo4ClientTask.h
Go4TaskHandler/TGo4ClientTask.cxx

Public Member Functions

Protected Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ TGo4ClientTask()

◆ ~TGo4ClientTask()

Member Function Documentation

◆ AddLocalCommand()

◆ ConnectServer()

◆ CreateStatus()

◆ DisconnectServer()

◆ GetCommandQueue()

◆ GetDataQueue()

◆ GetServerHostName()

◆ GetStatusQueue()

◆ GetTaskHandler()

◆ Initialization()

◆ IsConnected()

◆ Quit()

◆ UpdateStatus()

Member Data Documentation

◆ fbAutoConnect

◆ fbServerConnected

◆ fxCommandQ

◆ fxDataQ

◆ fxServerHostname

◆ fxStatusQ

◆ fxTaskHandler
