#include <TGo4ThreadManager.h>

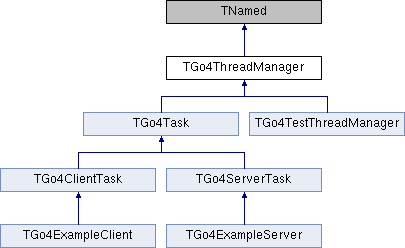

Inheritance diagram for TGo4ThreadManager:

Public Types
enum	{ fguTEXTLENGTH = 256 }

Public Member Functions
	TGo4ThreadManager (const TGo4ThreadManager &right)

	TGo4ThreadManager (const char *name, Bool_t blockingmode=kTRUE, Bool_t autostart=kTRUE, Bool_t autocreate=kTRUE)

virtual	~TGo4ThreadManager ()

void	SetTimer (TGo4AppControlTimer *ctrltimer)

TGo4ThreadHandler *	GetWorkHandler () const

Bool_t	BlockApp ()

Bool_t	UnBlockApp (Int_t mode=0)

virtual Int_t	Initialization ()

Bool_t	IsInitDone () const

Bool_t	IsTerminating () const

Bool_t	IsTerminateApp () const

Bool_t	IsAppBlocking () const

Bool_t	IsBeingQuit () const

void	SetBeingQuit (Bool_t on)

void	Launch ()

virtual void	Terminate (Bool_t termapp=kTRUE)

virtual void	TerminateFast ()

Static Public Attributes
static const Long_t	fglTIMERPERIOD = 200

Protected Attributes
Bool_t	fbInitDone {kFALSE}

Bool_t	fbTerminating {kFALSE}

Bool_t	fbTerminateApplication {kFALSE}

Bool_t	fbAppBlocking {kFALSE}

Bool_t	fbAutoCreate {kFALSE}

Bool_t	fbAutoStart {kFALSE}

Int_t	fbBeingQuit {0}

TGo4AppControlTimer *	fxBlocker {nullptr}

TGo4ThreadHandler *	fxWorkHandler {nullptr}

Private Member Functions
	TGo4ThreadManager ()

Detailed Description

Base class for classes that shall be accessed from a thread /runnable instance

Author: J. Adamczewski(at)gsi.de; Go4 project-DVEE-GSI Darmstadt; Germany

Version: 0.9

Since: jul 2000-oct 2001

Definition at line 30 of file TGo4ThreadManager.h.

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

Default textlength for char arrays

Enumerator
fguTEXTLENGTH

Definition at line 97 of file TGo4ThreadManager.h.

Constructor & Destructor Documentation

◆ TGo4ThreadManager() [1/3]

TGo4ThreadManager::TGo4ThreadManager ( const TGo4ThreadManager & right )

Definition at line 25 of file TGo4ThreadManager.cxx.

References fxBlocker, fxWorkHandler, and GO4TRACE.

◆ TGo4ThreadManager() [2/3]

TGo4ThreadManager::TGo4ThreadManager	(	const char *	name,
		Bool_t	blockingmode = `kTRUE`,
		Bool_t	autostart = `kTRUE`,
		Bool_t	autocreate = `kTRUE`
	)

ctor parameters: blockingmode=true: gApplication is blocked by timer autostart=true: all thread runnables start their work on Initialization() autocreate=true: all threads added to handler in threadmanager ctor are created on Launch()

Definition at line 36 of file TGo4ThreadManager.cxx.

References TGo4Log::Debug(), fbAppBlocking, fbAutoCreate, fbAutoStart, fglTIMERPERIOD, fxBlocker, fxWorkHandler, and GO4TRACE.

◆ ~TGo4ThreadManager()

TGo4ThreadManager::~TGo4ThreadManager ( )

virtual

Definition at line 72 of file TGo4ThreadManager.cxx.

References fxWorkHandler, and GO4TRACE.

◆ TGo4ThreadManager() [3/3]

TGo4ThreadManager::TGo4ThreadManager ( )

private

Member Function Documentation

◆ BlockApp()

Bool_t TGo4ThreadManager::BlockApp ( )

Blocks gSystem by means of the blocking timer

Definition at line 80 of file TGo4ThreadManager.cxx.

References fbAppBlocking, fbTerminating, fxBlocker, fxWorkHandler, GO4TRACE, TGo4ThreadHandler::IsOperating(), and TGo4AppControlTimer::SetApplicationRun().

Referenced by TGo4ThreadHandler::Cancel(), TGo4ThreadHandler::Create(), TGo4ThreadHandler::CreateAll(), GetWorkHandler(), Initialization(), TGo4ThreadHandler::ReCreate(), TGo4ThreadHandler::RemoveThread(), TGo4TestRunnable::Run(), TGo4ThreadHandler::Start(), and TGo4ThreadHandler::StartAll().

◆ GetWorkHandler()

TGo4ThreadHandler* TGo4ThreadManager::GetWorkHandler ( ) const

inline

Access to ThreadHandler for working threads

Definition at line 48 of file TGo4ThreadManager.h.

References BlockApp(), fxWorkHandler, Initialization(), and UnBlockApp().

Referenced by TGo4ServerTask::ConnectorThreadIsStopped(), TGo4Slave::GetThreadHandler(), TGo4AppControlTimer::Notify(), TGo4TestRunnable::Run(), TGo4ServerTask::StartConnectorThread(), TGo4ExampleServer::StartWorkThreads(), TGo4ServerTask::StopConnectorThread(), TGo4ExampleServer::StopWorkThreads(), TGo4Task::TGo4Task(), TGo4TaskHandler::TGo4TaskHandler(), TGo4ThreadException::TGo4ThreadException(), TGo4Display::~TGo4Display(), and TGo4ServerTask::~TGo4ServerTask().

◆ Initialization()

Int_t TGo4ThreadManager::Initialization ( )

virtual

Reimplemented in TGo4Task, and TGo4ClientTask.

Definition at line 156 of file TGo4ThreadManager.cxx.

References TGo4ThreadHandler::AllCreated(), BlockApp(), TGo4Log::Debug(), TGo4ThreadHandler::DumpThreads(), fbAutoCreate, fbAutoStart, fbInitDone, fxWorkHandler, GO4TRACE, and TGo4ThreadHandler::StartAll().

Referenced by GetWorkHandler(), TGo4Task::Initialization(), and TGo4AppControlTimer::Notify().

◆ IsAppBlocking()

Bool_t TGo4ThreadManager::IsAppBlocking ( ) const

inline

Returns true if threadmanager works in root system blocking mode

Definition at line 71 of file TGo4ThreadManager.h.

References fbAppBlocking.

◆ IsBeingQuit()

Bool_t TGo4ThreadManager::IsBeingQuit ( ) const

inline

Returns true if threadmanager works in root system blocking mode

Definition at line 74 of file TGo4ThreadManager.h.

References fbBeingQuit.

Referenced by TGo4TaskOwner::IsBeingQuit().

◆ IsInitDone()

Bool_t TGo4ThreadManager::IsInitDone ( ) const

inline

Definition at line 63 of file TGo4ThreadManager.h.

References fbInitDone.

◆ IsTerminateApp()

Bool_t TGo4ThreadManager::IsTerminateApp ( ) const

inline

Definition at line 68 of file TGo4ThreadManager.h.

References fbTerminateApplication.

Referenced by TGo4AppControlTimer::Notify().

◆ IsTerminating()

Bool_t TGo4ThreadManager::IsTerminating ( ) const

inline

returns termination status of Threadmanager

Definition at line 66 of file TGo4ThreadManager.h.

References fbTerminating.

Referenced by TGo4HistogramServer::ConnectObjectClient(), TGo4AppControlTimer::Notify(), TGo4StatusRunnable::Run(), TGo4DataRunnable::Run(), TGo4CommandRunnable::Run(), TGo4TaskManager::ServeClient(), TGo4TaskManager::WaitForClientRemoved(), TGo4HistogramServer::WaitForConnection(), TGo4ServerTask::WaitForConnection(), TGo4HistogramServer::WaitForOpen(), and TGo4TaskHandler::WaitGetPort().

◆ Launch()

void TGo4ThreadManager::Launch ( )

This Method has to be called to create the startup threads and to turn on the application control timer. Usually this is done at the end of the user's threadmanager constructor. The idea is that no thread should be started unless the user initializations are done; therefore, its up to the user to define when to Launch.

Definition at line 211 of file TGo4ThreadManager.cxx.

References TGo4ThreadHandler::CreateAll(), fbAutoCreate, fxBlocker, fxWorkHandler, and GO4TRACE.

Referenced by TGo4AnalysisClient::Constructor(), SetBeingQuit(), TGo4ClientTask::TGo4ClientTask(), TGo4Display::TGo4Display(), TGo4ExampleClient::TGo4ExampleClient(), TGo4ExampleServer::TGo4ExampleServer(), TGo4ServerTask::TGo4ServerTask(), and TGo4TestThreadManager::TGo4TestThreadManager().

◆ SetBeingQuit()

void TGo4ThreadManager::SetBeingQuit ( Bool_t on )

inline

Definition at line 76 of file TGo4ThreadManager.h.

References fbBeingQuit, Launch(), Terminate(), and TerminateFast().

Referenced by TGo4TaskHandlerAbortException::Handle(), and TGo4CommandRunnable::Run().

◆ SetTimer()

void TGo4ThreadManager::SetTimer ( TGo4AppControlTimer * ctrltimer )

inline

user can exchange the standard control timer by an own derived one by this method

Definition at line 45 of file TGo4ThreadManager.h.

References fxBlocker.

◆ Terminate()

void TGo4ThreadManager::Terminate ( Bool_t termapp = kTRUE )

virtual

deletes the Manager instance via Control timer. If termap is true, also terminates the root Application

Reimplemented in TGo4Task.

Definition at line 228 of file TGo4ThreadManager.cxx.

References TGo4Log::Debug(), fbTerminateApplication, fbTerminating, fxWorkHandler, GO4TRACE, TGo4ThreadHandler::StopAll(), and UnBlockApp().

Referenced by TGo4TerminateException::Handle(), SetBeingQuit(), TGo4Task::Terminate(), TerminateFast(), and TGo4Runnable::UnexpectedCatch().

◆ TerminateFast()

void TGo4ThreadManager::TerminateFast ( )

virtual

Alternative termination in case of error

Reimplemented in TGo4Task.

Definition at line 242 of file TGo4ThreadManager.cxx.

References Terminate().

Referenced by SetBeingQuit(), and TGo4Task::TerminateFast().

◆ UnBlockApp()

Bool_t TGo4ThreadManager::UnBlockApp ( Int_t mode = 0 )

Wakes up the control timer waiting for his condition; parameter mode specifies whether timer will block again at next turn (mode = 0), timer will block when all threads are up (mode = 1), or timer will not block again unless the next Block call, i.e. applicationrun flag is reset (mode=2)

Definition at line 108 of file TGo4ThreadManager.cxx.

References fxBlocker, TGo4AppControlTimer::GetApplicationRun(), TGo4AppControlTimer::GetCondition(), GO4TRACE, and TGo4AppControlTimer::SetApplicationRun().

Referenced by TGo4ThreadHandler::Cancel(), TGo4ThreadHandler::Create(), TGo4ThreadHandler::CreateAll(), GetWorkHandler(), TGo4ThreadHandler::ReCreate(), TGo4ThreadHandler::RemoveThread(), TGo4TestRunnable::Run(), TGo4ThreadHandler::Start(), TGo4ThreadHandler::StartAll(), and Terminate().

Member Data Documentation

◆ fbAppBlocking

Bool_t TGo4ThreadManager::fbAppBlocking {kFALSE}

protected

true if threadmanager shall block root gSystem using the AppControlTimer; false if gSystem shall never be blocked (necessary for gui)

Definition at line 114 of file TGo4ThreadManager.h.

Referenced by BlockApp(), IsAppBlocking(), TGo4ThreadManager(), and TGo4Task::UpdateStatus().

◆ fbAutoCreate

Bool_t TGo4ThreadManager::fbAutoCreate {kFALSE}

protected

If true, TThreads of all go4threads in list shall be created automatically on calling Launch().

Definition at line 118 of file TGo4ThreadManager.h.

Referenced by Initialization(), Launch(), TGo4ThreadManager(), and TGo4Task::UpdateStatus().

◆ fbAutoStart

Bool_t TGo4ThreadManager::fbAutoStart {kFALSE}

protected

If true, workfunctions (runnable Run()) of all go4threads in list shall be started automatically on Initialization. If false, TThreads may be running, but workfunctions suspend in condition wait.

Definition at line 123 of file TGo4ThreadManager.h.

Referenced by Initialization(), TGo4ThreadManager(), and TGo4Task::UpdateStatus().

◆ fbBeingQuit

Int_t TGo4ThreadManager::fbBeingQuit {0}

protected

Definition at line 128 of file TGo4ThreadManager.h.

Referenced by IsBeingQuit(), and SetBeingQuit().

◆ fbInitDone

Bool_t TGo4ThreadManager::fbInitDone {kFALSE}

protected

is set kTRUE after first Initialize is done

Definition at line 102 of file TGo4ThreadManager.h.

Referenced by TGo4ClientTask::Initialization(), Initialization(), TGo4Task::Initialization(), IsInitDone(), and TGo4Task::UpdateStatus().

◆ fbTerminateApplication

Bool_t TGo4ThreadManager::fbTerminateApplication {kFALSE}

protected

If true, terminate complete application. If false, only terminate threadmanager instance.

Definition at line 109 of file TGo4ThreadManager.h.

Referenced by IsTerminateApp(), and Terminate().

◆ fbTerminating

Bool_t TGo4ThreadManager::fbTerminating {kFALSE}

protected

flag showing termination status

Definition at line 105 of file TGo4ThreadManager.h.

Referenced by BlockApp(), IsTerminating(), Terminate(), and TGo4Task::UpdateStatus().

◆ fglTIMERPERIOD

const Long_t TGo4ThreadManager::fglTIMERPERIOD = 200

static

Period in ms for the application control timer

Definition at line 94 of file TGo4ThreadManager.h.

Referenced by TGo4ThreadManager().

◆ fxBlocker

TGo4AppControlTimer* TGo4ThreadManager::fxBlocker {nullptr}

protected

Composition of Application control timer. 1 1

Definition at line 134 of file TGo4ThreadManager.h.

Referenced by BlockApp(), Launch(), SetTimer(), TGo4ThreadManager(), and UnBlockApp().

◆ fxWorkHandler

TGo4ThreadHandler* TGo4ThreadManager::fxWorkHandler {nullptr}

protected

Thread handler aggregate (threadsafe list of go4 threads) 1 1

Definition at line 140 of file TGo4ThreadManager.h.

Referenced by BlockApp(), TGo4ClientTask::ConnectServer(), GetWorkHandler(), Initialization(), TGo4Task::Initialization(), Launch(), TGo4ExampleClient::Start(), TGo4ExampleClient::Stop(), TGo4Task::SubmitLocalCommand(), Terminate(), TGo4ExampleClient::TGo4ExampleClient(), TGo4ExampleServer::TGo4ExampleServer(), TGo4ServerTask::TGo4ServerTask(), TGo4TestThreadManager::TGo4TestThreadManager(), TGo4ThreadManager(), TGo4ExampleClient::~TGo4ExampleClient(), TGo4ExampleServer::~TGo4ExampleServer(), and ~TGo4ThreadManager().

The documentation for this class was generated from the following files:

Go4ThreadManager/TGo4ThreadManager.h
Go4ThreadManager/TGo4ThreadManager.cxx
