TDocLatexDirective Class Reference

#include <TDocDirective.h>

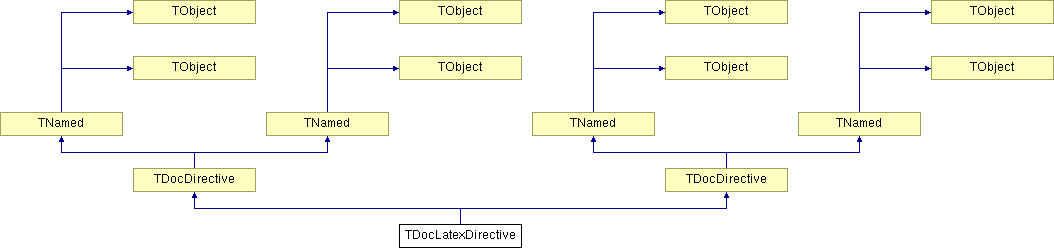

Inheritance diagram for TDocLatexDirective:

TDocDirective TDocDirective TNamed TNamed TNamed TNamed TObject TObject TObject TObject TObject TObject TObject TObject List of all members.

Public Member Functions

 TDocLatexDirective ()
virtual ~TDocLatexDirective ()
virtual void AddLine (const TSubString &line)
virtual const char * GetEndTag () const
const char * GetAlignment () const
const char * GetSeparator () const
Bool_t SeparatorIsRegexp () const
Int_t GetFontSize () const
TList * GetListOfLines () const
virtual Bool_t GetResult (TString &result)
virtual void DeleteOutput () const
 ClassDef (TDocLatexDirective, 0)
 TDocLatexDirective ()
virtual ~TDocLatexDirective ()
virtual void AddLine (const TSubString &line)
virtual const char * GetEndTag () const
const char * GetAlignment () const
const char * GetSeparator () const
Bool_t SeparatorIsRegexp () const
Int_t GetFontSize () const
TList * GetListOfLines () const
virtual Bool_t GetResult (TString &result)
virtual void DeleteOutput () const
 ClassDef (TDocLatexDirective, 0)

Protected Member Functions

virtual void CreateLatex (const char *filename)
virtual void AddParameter (const TString &name, const char *value=0)
virtual void GetBoundingBox (TLatex &latex, const char *text, Float_t &width, Float_t &height)
virtual void CreateLatex (const char *filename)
virtual void AddParameter (const TString &name, const char *value=0)
virtual void GetBoundingBox (TLatex &latex, const char *text, Float_t &width, Float_t &height)

Protected Attributes

TMacro * fLatex
Int_t fFontSize
TString fSeparator
Bool_t fSepIsRegexp
TString fAlignment
TVirtualPad * fBBCanvas
TMacro * fLatex
TVirtualPad * fBBCanvas

Detailed Description

Definition at line 121 of file TDocDirective.h.

Constructor & Destructor Documentation

TDocLatexDirective::TDocLatexDirective (  )  [inline]

Definition at line 135 of file TDocDirective.h.

TDocLatexDirective::~TDocLatexDirective (  )  [virtual]

Definition at line 585 of file TDocDirective.cxx.

References fBBCanvas, fLatex, gSystem, and TSystem::ProcessEvents().

TDocLatexDirective::TDocLatexDirective (  )  [inline]

Definition at line 135 of file TDocDirective.h.

virtual TDocLatexDirective::~TDocLatexDirective (  )  [virtual]

Member Function Documentation

void TDocLatexDirective::CreateLatex ( const char *  filename  )  [protected, virtual]

Definition at line 617 of file TDocDirective.cxx.

References TObjArray::Add(), align(), TVirtualPad::cd(), TVirtualPad::Clear(), TObject::Error(), fAlignment, fBBCanvas, fFontSize, TList::First(), fLatex, Form(), fSeparator, fSepIsRegexp, GetBoundingBox(), TObjArray::GetEntries(), TDocDirective::GetHtml(), TMacro::GetListOfLines(), gPad, gROOT, gSystem, TString::Index(), TROOT::IsBatch(), kFALSE, kNPOS, kWhite, latex(), TString::Length(), line, TVirtualPad::Print(), TSystem::ProcessEvents(), TROOT::ProcessLineFast(), R__LOCKGUARD, regexp(), TROOT::SetBatch(), TVirtualPad::SetBorderMode(), TAttFill::SetFillColor(), TCollection::SetOwner(), str, and x.

Referenced by GetResult().

void TDocLatexDirective::AddParameter ( const TString &  name,
const char *  value = 0
) [protected, virtual]

Reimplemented from TDocDirective.

Definition at line 842 of file TDocDirective.cxx.

References TObject::Error(), fAlignment, fFontSize, fSeparator, TString::kIgnoreCase, name, and TObject::Warning().

void TDocLatexDirective::GetBoundingBox ( TLatex &  latex,
const char *  text,
Float_t &  width,
Float_t &  height
) [protected, virtual]

Definition at line 776 of file TDocDirective.cxx.

References TVirtualPad::cd(), fBBCanvas, and latex().

Referenced by CreateLatex().

void TDocLatexDirective::AddLine ( const TSubString &  line  )  [virtual]

Implements TDocDirective.

Definition at line 595 of file TDocDirective.cxx.

References TMacro::AddLine(), fLatex, TDocDirective::GetDocParser(), TDocDirective::GetName(), TString::Length(), line, name, and TDocParser::Strip().

virtual const char* TDocLatexDirective::GetEndTag (  )  const [inline, virtual]

Implements TDocDirective.

Definition at line 141 of file TDocDirective.h.

const char* TDocLatexDirective::GetAlignment (  )  const [inline]

Definition at line 143 of file TDocDirective.h.

References fAlignment.

const char* TDocLatexDirective::GetSeparator (  )  const [inline]

Definition at line 144 of file TDocDirective.h.

References fSeparator.

Bool_t TDocLatexDirective::SeparatorIsRegexp (  )  const [inline]

Definition at line 145 of file TDocDirective.h.

References fSepIsRegexp.

Int_t TDocLatexDirective::GetFontSize (  )  const [inline]

Definition at line 146 of file TDocDirective.h.

References fFontSize.

TList * TDocLatexDirective::GetListOfLines (  )  const

Definition at line 792 of file TDocDirective.cxx.

References fLatex, and TMacro::GetListOfLines().

Bool_t TDocLatexDirective::GetResult ( TString &  result  )  [virtual]

Implements TDocDirective.

Definition at line 799 of file TDocDirective.cxx.

References CreateLatex(), TString::Data(), TList::First(), fLatex, gDebug, TDocDirective::GetDocOutput(), TDocDirective::GetDocParser(), TMacro::GetListOfLines(), TNamed::GetName(), TDocDirective::GetName(), TDocDirective::GetOutputDir(), gSystem, TObject::Info(), kTRUE, TString::Length(), TDocOutput::NameSpace2FileName(), TSystem::PrependPathName(), TString::Remove(), TString::ReplaceAll(), TDocOutput::ReplaceSpecialChars(), and result().

virtual void TDocLatexDirective::DeleteOutput (  )  const [inline, virtual]

Reimplemented from TDocDirective.

Definition at line 151 of file TDocDirective.h.

References TDocDirective::DeleteOutputFiles().

TDocLatexDirective::ClassDef ( TDocLatexDirective  ,
0
)

virtual void TDocLatexDirective::CreateLatex ( const char *  filename  )  [protected, virtual]

virtual void TDocLatexDirective::AddParameter ( const TString &  name,
const char *  value = 0
) [protected, virtual]

Reimplemented from TDocDirective.

virtual void TDocLatexDirective::GetBoundingBox ( TLatex &  latex,
const char *  text,
Float_t &  width,
Float_t &  height
) [protected, virtual]

virtual void TDocLatexDirective::AddLine ( const TSubString &  line  )  [virtual]

Implements TDocDirective.

virtual const char* TDocLatexDirective::GetEndTag (  )  const [inline, virtual]

Implements TDocDirective.

Definition at line 141 of file TDocDirective.h.

const char* TDocLatexDirective::GetAlignment (  )  const [inline]

Definition at line 143 of file TDocDirective.h.

References fAlignment.

const char* TDocLatexDirective::GetSeparator (  )  const [inline]

Definition at line 144 of file TDocDirective.h.

References fSeparator.

Bool_t TDocLatexDirective::SeparatorIsRegexp (  )  const [inline]

Definition at line 145 of file TDocDirective.h.

References fSepIsRegexp.

Int_t TDocLatexDirective::GetFontSize (  )  const [inline]

Definition at line 146 of file TDocDirective.h.

References fFontSize.

TList* TDocLatexDirective::GetListOfLines (  )  const

virtual Bool_t TDocLatexDirective::GetResult ( TString &  result  )  [virtual]

Implements TDocDirective.

virtual void TDocLatexDirective::DeleteOutput (  )  const [inline, virtual]

Reimplemented from TDocDirective.

Definition at line 151 of file TDocDirective.h.

References TDocDirective::DeleteOutputFiles().

TDocLatexDirective::ClassDef ( TDocLatexDirective  ,
0
)

Member Data Documentation

TMacro* TDocLatexDirective::fLatex [protected]

Definition at line 123 of file TDocDirective.h.

Referenced by AddLine(), CreateLatex(), GetListOfLines(), GetResult(), and ~TDocLatexDirective().

Int_t TDocLatexDirective::fFontSize [protected]

Definition at line 124 of file TDocDirective.h.

Referenced by AddParameter(), CreateLatex(), and GetFontSize().

TString TDocLatexDirective::fSeparator [protected]

Definition at line 125 of file TDocDirective.h.

Referenced by AddParameter(), CreateLatex(), and GetSeparator().

Bool_t TDocLatexDirective::fSepIsRegexp [protected]

Definition at line 126 of file TDocDirective.h.

Referenced by CreateLatex(), and SeparatorIsRegexp().

TString TDocLatexDirective::fAlignment [protected]

Definition at line 127 of file TDocDirective.h.

Referenced by AddParameter(), CreateLatex(), and GetAlignment().

TVirtualPad* TDocLatexDirective::fBBCanvas [protected]

Definition at line 128 of file TDocDirective.h.

Referenced by CreateLatex(), GetBoundingBox(), and ~TDocLatexDirective().

TMacro* TDocLatexDirective::fLatex [protected]

Definition at line 123 of file TDocDirective.h.

TVirtualPad* TDocLatexDirective::fBBCanvas [protected]

Definition at line 128 of file TDocDirective.h.

The documentation for this class was generated from the following files:
