class HMdcCal2Sim: public HMdcCal2

_HADES_CLASS_DESCRIPTION


 HMdcCal2Sim

 Data object for a Mdc cell containing distances to the wires for simulated
 events

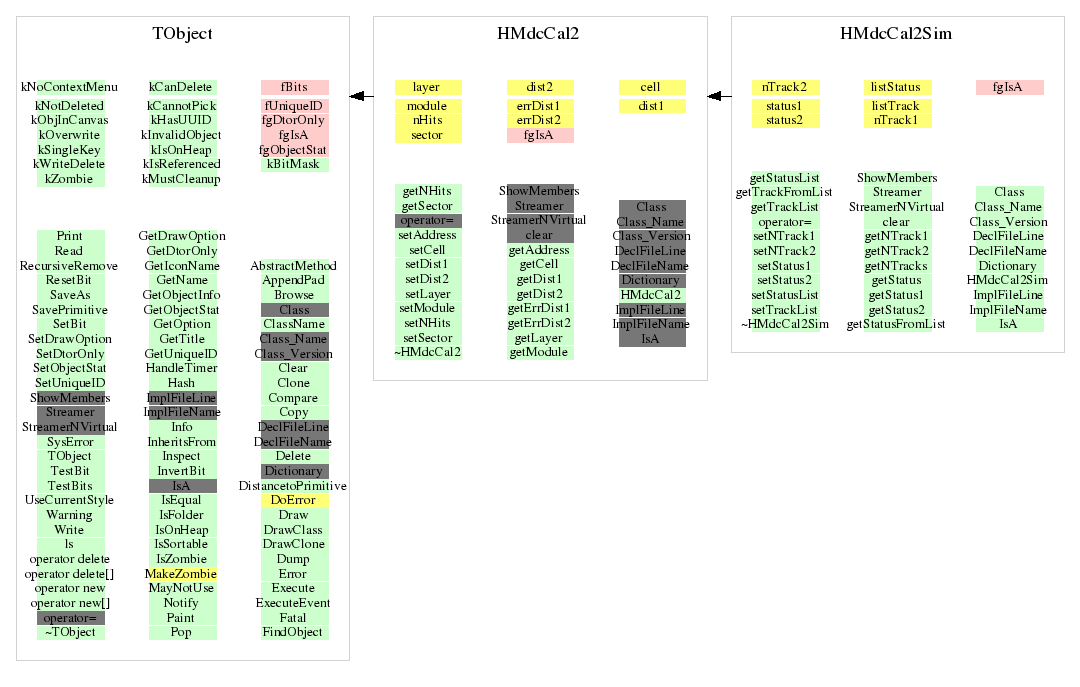

 This class inherits from the class HMdcCal1 used for real data.

 As additional data elements the track numbers of the two hits are stored
 and a status number.
 The track number of the hits can be accessed via the inline functions
     void setNTrack1(const Int_t nTrack1) of dist1
     void setNTrack2(const Int_t nTrack2) of dist2
     Int_t getNTrack1(void) const         of dist1
     Int_t getNTrack2(void) const         of dist2
 and the status via the inline functions
     void setStatus1(const Int_t flag)    of dist1
     Int_t getStatus1() const             of dist1
     void setStatus2(const Int_t flag)    of dist2
     Int_t getStatus2() const             of dist2
     void  setTrackList(Int_t* array) array of tracks[5]  can be coppied
           to TrackList
     void  getTrackList(Int_t* array) array of tracks[5]  can be filled
           from TrackList
     void  setStatusList(Int_t* array) array of status[5] can be coppied
           to StatusList
     void  getStatusList(Int_t* array) array of status[5] can be filled
           from StatusList
     Int_t getNTracks() returns number of tracks in track list,
           can be used for loops
           for(Int_t i=0;i<(HMdcCal1Sim*)cal->getNTracks();i++)
              { (HMdcCal1Sim*)cal->getTrackFromList(i);}
     Int_t* getStatusList(){return (Int_t*)listStatus;}
     Int_t* getTrackList() {return (Int_t*)listTrack;}
     Int_t getTrackFromList (Int_t element){return listTrack [element];}
     Int_t getStatusFromList(Int_t element){return listStatus[element];}

 According to the two different TDC modes the HMdcCal1Sim category is filled.

 MODE 1 (two times LEADING EDGE of the TDC signal)
           nHits ==  -2 for 2 valid hits
                 ==  -1 for 1 valid hit
                 ==   0 for a not filled hit (e.g. 1 hit was kicked out by efficiency)
         status1 ==   1 for a valid first hit
                 ==   2 for a valid first hit caused by noise
                 ==  -3 for a not valid hit
                 ==   0 for REAL data (embedding) or no hit
         status2 ==   1 for a valid second hit
                 ==   2 for a valid first hit caused by noise
                 ==  -3 for a not valid hit
                 ==   0 for REAL data (embedding) or no hit
         nTrack1 ==   track number of the first valid hit
                 ==  -99 if not filled
         nTrack2 ==   track number of the second valid hit
                 ==  -99 if not filled
         dist1   ==   distance from sense wire of irst valid hit
                 ==  -99 if not filled
         dist2   ==   distance from sense wire of the second valid hit
                 ==  -99 if not filled
     listTrack[5] :   contains the track number of the first 5 hits per cell
                      == -99 if no hit was filled
     listStatus[5]:   contains the status flags of the first 5 hits per cell
                      == -1 if hit was kicked out by cell efficiency cut
                      == -2 if hit was kicked out by layer efficiency cut
                      ==  1 if hit is valid
                      ==  2 if hit is noise
                      ==  3 if hit is REAL data (embedding)
                      ==  0 if no hit was filled
     both lists will be filled even if no vaild hit was found

 MODE 2 (LEADING AND TRAILING EDGE of the TDC signal)
           nHits ==  +2 for 2 valid hits
                 ==   0 for not filled hit (e.g. 1 hit was kicked out by efficiency)
         status1 ==   1 for a valid first hit
                 ==   2 for a valid first hit caused by noise
                 ==  -3 for a not valid hit
                 ==   0 for REAL data (embedding) or no hit
         status2 ==   1 for a valid first hit
                 ==   2 for a valid first hit caused by noise
                 ==  -3 for a not valid hit
                 ==   0 for REAL data (embedding) or no hit
         nTrack1 ==   track number of first valid hit
                 ==  -99 if not filled
         nTrack2 ==   track number of first valid hit
                 ==  -99 if not filled
         dist1   ==   distance from sense wire of the first valid hit
                 ==  -99 if not filled
         dist2   ==  -99 if not filled
     listTrack[5] :   contains the track number of the first 5 hits per cell
                      == -99 if no hit was filled
     listStatus[5]:   contains the status flags of the first 5 hits per cell
                      == -1 if hit was kicked out by cell efficiency cut
                      == -2 if hit was kicked out by layer efficiency cut
                      ==  1 if hit is valid
                      ==  2 if hit is noise
                      ==  3 if hit is REAL data (embedding)
                      ==  0 if no hit was filled
     both lists will be filled even if no vaild hit was found
