srs::test::SRSEmulator Class Reference

#include <SRSEmulator.hpp>

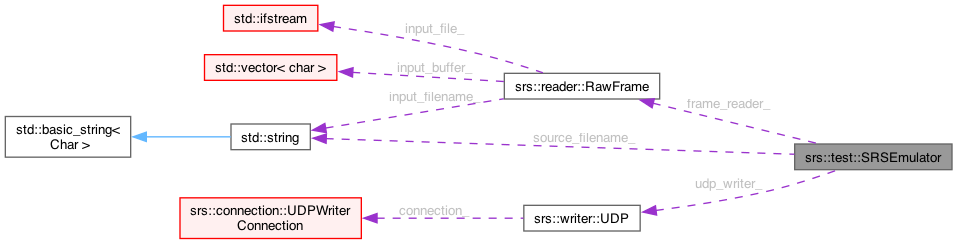

Collaboration diagram for srs::test::SRSEmulator:

Classes
struct	Config

Public Types
enum class	ReceiveType : uint8_t { invalid , acq_on , acq_off }

Public Member Functions
void	set_delay_time (std::size_t time)
	SRSEmulator (const Config &config)
void	set_continue_output (bool is_continue)
void	wait_for_connection ()
void	wait_for_data_sender ()

Private Types
using	IOContextType = asio::thread_pool

Private Member Functions
auto	start_send_data () -> asio::awaitable< void >
void	do_if_acq_on (asio::any_io_executor &executor)
void	do_if_acq_off ()
void	listen_on_communications ()
auto	listen_coro () -> asio::awaitable< void >
auto	send_response (connection::udp::endpoint endpoint, ReceiveType result_type) -> asio::awaitable< void >

Private Attributes
std::chrono::microseconds	delay_time_ { 1 }
std::atomic< bool >	is_continue_ = false
std::atomic< bool >	is_idle_ = true
std::atomic< bool >	is_shutdown_ = false
IOContextType	io_context_ { 4 }
std::string	source_filename_
Config	config_
reader::RawFrame	frame_reader_
asio::ip::udp::socket	udp_socket_
std::shared_ptr< asio::system_timer >	data_sender_status_ = std::make_shared<asio::system_timer>(io_context_)
asio::steady_timer	data_sending_control_ { io_context_ }

Detailed Description

Definition at line 30 of file SRSEmulator.hpp.

Member Typedef Documentation

IOContextType

using srs::test::SRSEmulator::IOContextType = asio::thread_pool

private

Definition at line 54 of file SRSEmulator.hpp.

Member Enumeration Documentation

ReceiveType

enum class srs::test::SRSEmulator::ReceiveType : uint8_t

strong

Enumerator
invalid
acq_on
acq_off

Definition at line 40 of file SRSEmulator.hpp.

Constructor & Destructor Documentation

SRSEmulator()

srs::test::SRSEmulator::SRSEmulator ( const Config & config )

explicit

Definition at line 109 of file SRSEmulator.cpp.

Member Function Documentation

do_if_acq_off()

void srs::test::SRSEmulator::do_if_acq_off ( )

private

Definition at line 147 of file SRSEmulator.cpp.

do_if_acq_on()

void srs::test::SRSEmulator::do_if_acq_on ( asio::any_io_executor & executor )

private

Definition at line 135 of file SRSEmulator.cpp.

listen_coro()

auto srs::test::SRSEmulator::listen_coro ( ) ->asio::awaitable< void >

private

Definition at line 158 of file SRSEmulator.cpp.

listen_on_communications()

void srs::test::SRSEmulator::listen_on_communications ( )

private

send_response()

auto srs::test::SRSEmulator::send_response ( connection::udp::endpoint endpoint, ReceiveType result_type )->asio::awaitable< void >

private

Definition at line 149 of file SRSEmulator.cpp.

set_continue_output()

void srs::test::SRSEmulator::set_continue_output ( bool is_continue )

inline

Definition at line 49 of file SRSEmulator.hpp.

set_delay_time()

void srs::test::SRSEmulator::set_delay_time ( std::size_t time )

inline

Definition at line 47 of file SRSEmulator.hpp.

start_send_data()

auto srs::test::SRSEmulator::start_send_data ( ) ->asio::awaitable< void >

private

Definition at line 193 of file SRSEmulator.cpp.

wait_for_connection()

void srs::test::SRSEmulator::wait_for_connection

(

)

Definition at line 119 of file SRSEmulator.cpp.

wait_for_data_sender()

void srs::test::SRSEmulator::wait_for_data_sender

(

)

Definition at line 128 of file SRSEmulator.cpp.

Member Data Documentation

config_

Config srs::test::SRSEmulator::config_

private

Definition at line 62 of file SRSEmulator.hpp.

data_sender_status_

std::shared_ptr<asio::system_timer> srs::test::SRSEmulator::data_sender_status_ = std::make_shared<asio::system_timer>(io_context_)

private

Definition at line 65 of file SRSEmulator.hpp.

data_sending_control_

asio::steady_timer srs::test::SRSEmulator::data_sending_control_ { io_context_ }

private

Definition at line 66 of file SRSEmulator.hpp.

delay_time_

std::chrono::microseconds srs::test::SRSEmulator::delay_time_ { 1 }

private

Definition at line 56 of file SRSEmulator.hpp.

frame_reader_

reader::RawFrame srs::test::SRSEmulator::frame_reader_

private

Definition at line 63 of file SRSEmulator.hpp.

io_context_

IOContextType srs::test::SRSEmulator::io_context_ { 4 }

private

Definition at line 60 of file SRSEmulator.hpp.

is_continue_

std::atomic<bool> srs::test::SRSEmulator::is_continue_ = false

private

Definition at line 57 of file SRSEmulator.hpp.

is_idle_

std::atomic<bool> srs::test::SRSEmulator::is_idle_ = true

private

Definition at line 58 of file SRSEmulator.hpp.

is_shutdown_

std::atomic<bool> srs::test::SRSEmulator::is_shutdown_ = false

private

Definition at line 59 of file SRSEmulator.hpp.

source_filename_

std::string srs::test::SRSEmulator::source_filename_

private

Definition at line 61 of file SRSEmulator.hpp.

udp_socket_

asio::ip::udp::socket srs::test::SRSEmulator::udp_socket_

private

Definition at line 64 of file SRSEmulator.hpp.

---

The documentation for this class was generated from the following files:

• test/backend/srs/SRSEmulator.hpp
• test/backend/srs/SRSEmulator.cpp
