LAPPD photon multiplicity

Photon yield per LAPPD PMT for DIRC@EIC

  • DIRC@EIC, EPIC
  • 3-layer spherical lens with sapphire, r=[62,36]
  • 3x2 LAPPD layout; each LAPPD has 120mm x 120mm size with 108mm x 108mm active area
  • pions and kaons @ 6 GeV/c; phi = 0 (no field); vertex y-shifted by 0.5*barwidth (to hit middle of the bar)
  • 0.5 mrad tracking
  • 100 ps time precision
  • geometrical reconstruction with averaged LUT from 15M photons
  • GR with per-PMT and chromatic corrections
  • 20k tracks for pdf generation (per each particle species); 5k for determining separation

Event display of LAPPD layout:

Example of occupancy per LAPPD @ 30 degree polar angle:

Example of photon yield distribution @ 30 degree polar angle (numbering from left to right starting from bottom):

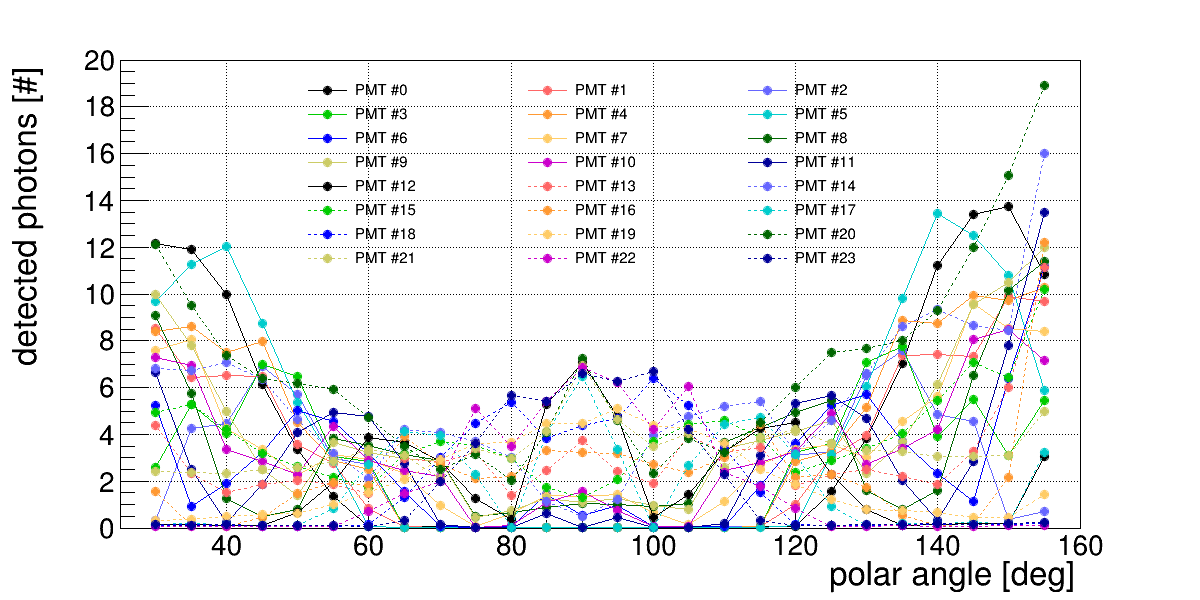

Mean of the photon yield per LAPPD:

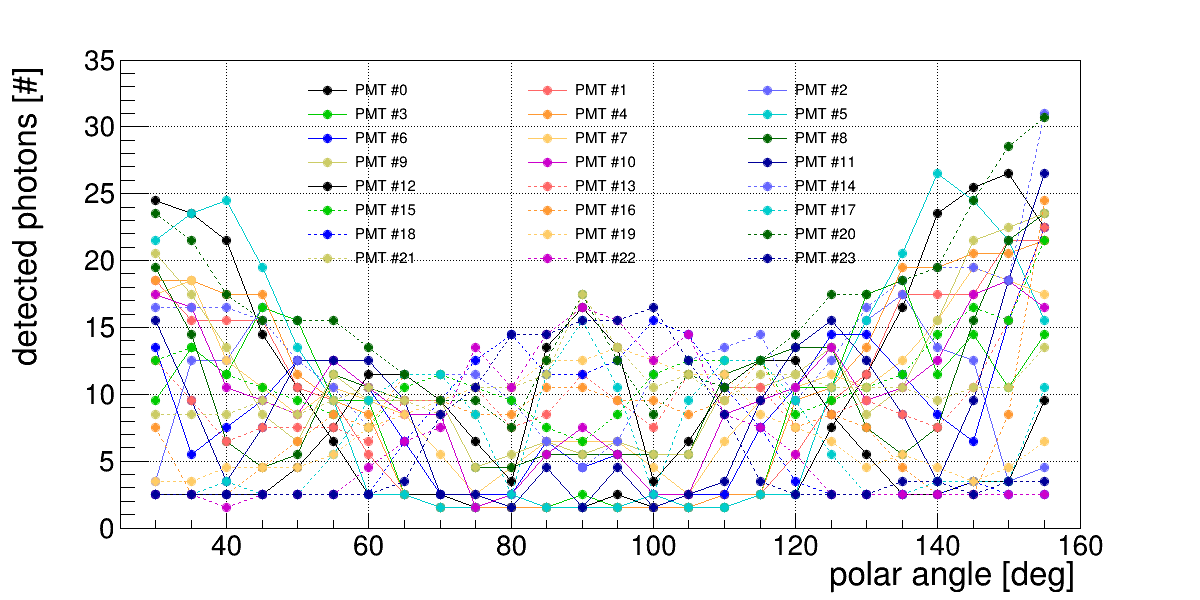

Max of the photon yield per LAPPD:
